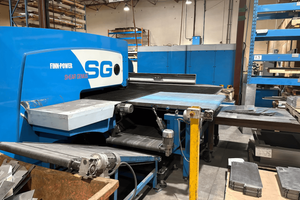

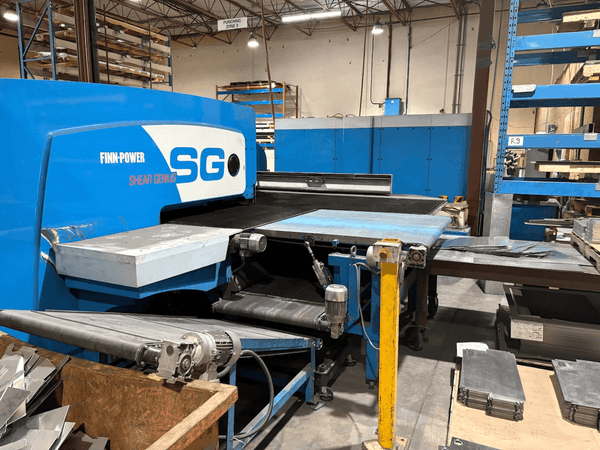

2006 FINN POWER SHEAR GENIUS SG6

FINN POWER SHEAR GENIUS SG6 SPECIFICATIONS

MAX. PUNCHING FORCE: 33 TONS
MAX. SHEET SIZE: 60" X 121"
MAX. WORK PIECE WEIGHT: 440 LBS
MAX. HIT RATE: 1,000 HPM
MAX. MATERIAL THICKNESS: MILD STEEL: 0.315" (MS)

SPEED:
X-AXIS: 4,724 IPM
Y-AXIS: 3,543 IPM
POSITIONING: 5,905 IPM

MAX. HIT RATE:
0.039" BETWEEN HOLES: 1,1001 HPM
0.984" BETWEEN HOLES: 500 HPM
9.84" BETWEEEN H0LES: 200 HPM

PUNCHING ACCURACY:
X/Y AXES MAX. HOLE LOCATION DEVIATION : 0.004"
CNC INDEX TOOL MAX. HOLE-TO-HOLE DISTANCE DEVIATION: (+/-) 0.002"
CNC INDEX TOOL MAX. ANGULAR DEVIATION: (+/-) 0.1 DEG

POSITIONING ACCURACY:
X/Y AXES POSITIONAL DEVIATION Pa: 0.003"/(+/-) 0.0015"
X/Y AXES POSITIONAL SCATTER Ps: 0.0015"/(+/-) 0.001"

TOOL CHANGE TIME: 3 SECONDS
TURRET ROTATION: 30 RPM
MAX. TOOL ROTATION: 166 RPM
TOTAL STATIONS: 20
MAX. TOOLS IN TURRET: 50
TOOLING TYPE: THICK
TURRET CONFIGURATION: 2 up forming stations

TOOL HOLDERS:
FIXED:
B: 5 PCS
C: 5 PCS
D: 1 PC

INDEX:
Bi: 2 PCS
Ci: 1 PC
Di: 2 PCS

MULTI-TOOL:
MT8-24: 1 PC
MT24-8: 1 PC

FORMING STATIONS:
Bf: 1 PC
Df: 1 PC

OIL TANK VOLUME: 106 GAL
PROGRAM MEMORY: 1.5 MB

ELECTRICAL:
REQUIREMENTS: 80kVA
AVG. CONSUMPTION: 35kVA/30kW

EQUIPPED WITH:
SIEMENS SINUMERIK 840D CONTROL
RS 1500 RIGHT ANGLE SHEAR
INDEXABLE UPFORMING
BRUSH TABLE
CABINET COOLER
SC/1 SLUG CONVEYOR
SC/2 LIFTING SCRAP CONVEYOR
(1) SORTING LOCATION FOR SCRAP IN EXIT CONVEYOR SYSTEM
(2) SCRAP SORTING CONVEYORS (ONE FLAT, ONE LIFTING)
PROGRAMMABLE BLADE CLEARANCE FOR SHEAR
PROGRAMMABLE SHEAR HOLD DOWN GROUPS
LOADING SYSTEM LD6/1 SINGLE LOAD TABLE
DOUBLE SHEET DETECTION
SHEET POSITIONING

APPROX. MACHINE WEIGHT: 57,320 LBS
