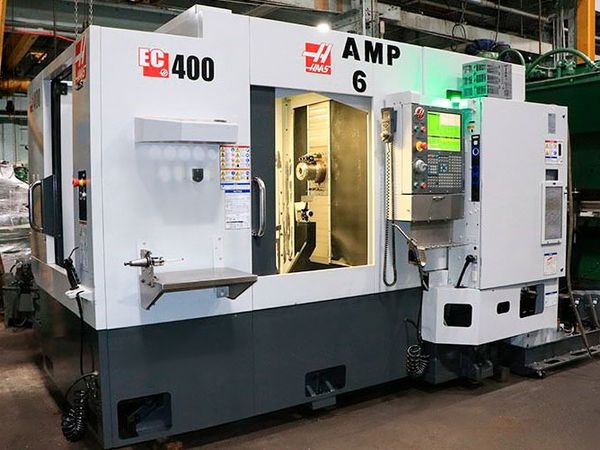

Located in the industrial heart of New Jersey, this 2013 HAAS EC400 Horizontal Machining Center beckons to both seasoned machine veterans and newcomers looking for a ready-to-use, well-maintained machine. With a solid track r...Read More
Notify Me:
Specs:
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
Pallet Size: 15.75" x 15.75"
Dimensions: 93" x 178" x 131"
Weight: 15,200 LBS
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
Pallet Size: 15.75" x 15.75"
Dimensions: 93" x 178" x 131"
Weight: 15,200 LBS
Options:
HAAS CNC Control
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
70 POSITION ATC
12,000 RPM
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH SPINDLE COOLANT
AUXILIARY COOLANT FILTER
JORGENSON CHIP CONVEYOR
HIGH SPEED MACHINING
ETHERNET
EXPANDED MEMORY
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENT.
MACROS
QUICK CODE
INTUITIVE PROGRAMMING SYSTEM
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
70 POSITION ATC
12,000 RPM
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH SPINDLE COOLANT
AUXILIARY COOLANT FILTER
JORGENSON CHIP CONVEYOR
HIGH SPEED MACHINING
ETHERNET
EXPANDED MEMORY
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENT.
MACROS
QUICK CODE
INTUITIVE PROGRAMMING SYSTEM
