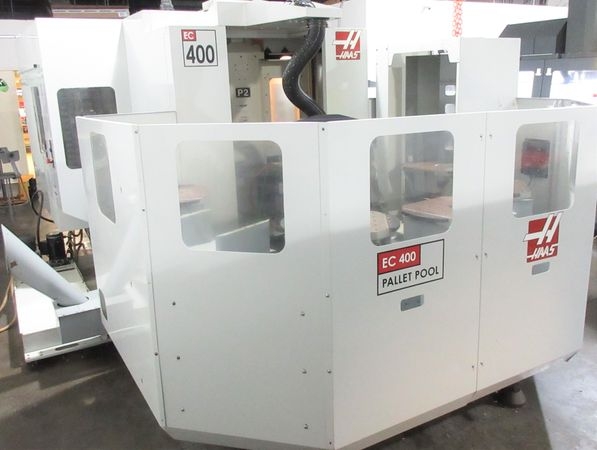

Used HAAS EC400PP Horizontal Machining Center
Pre-owned HAAS EC400PP 2007 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in MA. This HAAS Horizontal Machining Center is the only one in stock and available for a limited time. Get a quote today on this EC400PP before it's gone.
Specifications:
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 1,000 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
6 Pallet Pool Changer
Pallet Change Time: 8 Seconds
Cutting Feed Rates: 710 Inch Per Minute
Max Torque: 90ft-lb
Max Tool Weight: 12 lbs
Max Tool Dia: 6"
Max Tool Length: 16"
Tool Changing Time: 2.1 – 3.7 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
1 MB Memory
3.5" Floppy Drive
Home ButtonUsed haas EC-400PP Pallet Pool For Sale
Keylock Switch
Remote Jog Handle
Power Failure Detection Module
Visual Quick Code
MFG 12/2007
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 1,000 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 70 ATC
6 Pallet Pool Changer
Pallet Change Time: 8 Seconds
Cutting Feed Rates: 710 Inch Per Minute
Max Torque: 90ft-lb
Max Tool Weight: 12 lbs
Max Tool Dia: 6"
Max Tool Length: 16"
Tool Changing Time: 2.1 – 3.7 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
1 MB Memory
3.5" Floppy Drive
Home ButtonUsed haas EC-400PP Pallet Pool For Sale
Keylock Switch
Remote Jog Handle
Power Failure Detection Module
Visual Quick Code
MFG 12/2007
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
Equipped With:
Haas CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
360 Deg. Indexing Table
Pallet Pool/FMS
Probe
Coolant Thru Spindle
Programmable Coolant
360 Deg. Indexing Table
Pallet Pool/FMS
Owner:
Wayne (Machine Shop in USA)
