Used HAAS EC400PP Horizontal Machining Center

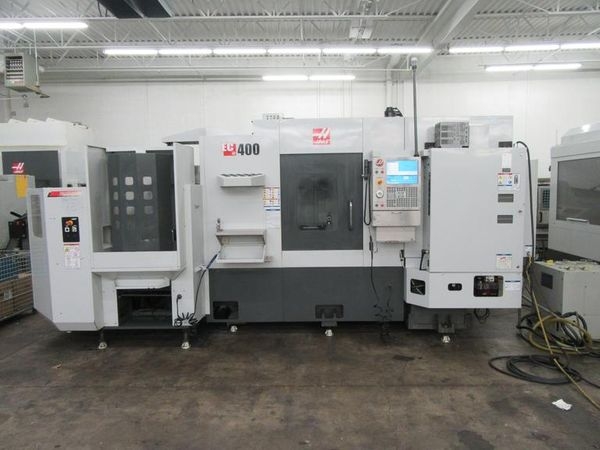

Pre-owned Haas EC400 PP 2012 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Connecticut. This Haas Horizontal Machining Center is available for a limited time. Get a quote today on this EC400 PP before it's gone.
Specs:
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Pallet Size: 15.75" x 15.75""
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Max Pallet Load: 1000 LBS
Spindle Taper: 40 CT
Tool Changer: 70 ATC
6 Pallet Pool Changer
Pallet Change Time: 8 Seconds
Cutting Feed Rates: 710 Inch Per Minute
Max Torque: 90ft-lb
Max Tool Weight: 12 lbs
Max Tool Dia: 6?
Max Tool Length: 16?
Tool Changing Time: 2.1 – 3.7 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
1 MB Memory
3.5" Floppy Drive
Home ButtonUsed haas EC-400PP Pallet Pool For Sale
Keylock Switch
Remote Jog Handle
Power Failure Detection Module
Visual Quick Code
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Pallet Size: 15.75" x 15.75""
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Max Pallet Load: 1000 LBS
Spindle Taper: 40 CT
Tool Changer: 70 ATC
6 Pallet Pool Changer
Pallet Change Time: 8 Seconds
Cutting Feed Rates: 710 Inch Per Minute
Max Torque: 90ft-lb
Max Tool Weight: 12 lbs
Max Tool Dia: 6?
Max Tool Length: 16?
Tool Changing Time: 2.1 – 3.7 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
1 MB Memory
3.5" Floppy Drive
Home ButtonUsed haas EC-400PP Pallet Pool For Sale
Keylock Switch
Remote Jog Handle
Power Failure Detection Module
Visual Quick Code
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
Owner:
Don (Machine Shop in USA)
