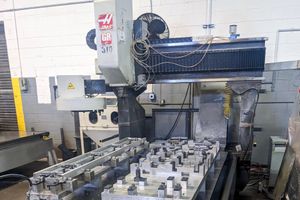

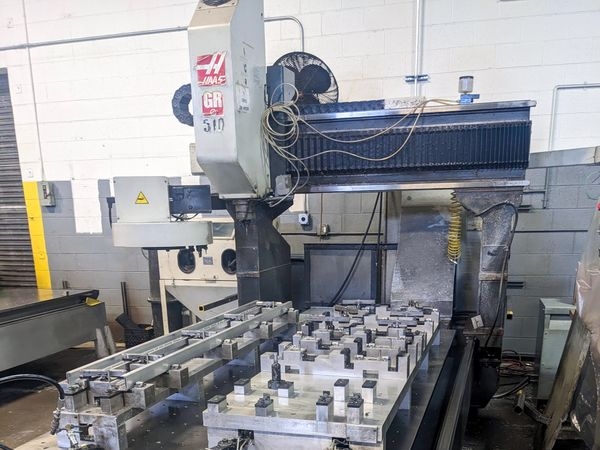

Pre-owned HAAS GR510 2011 Router. This Router has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Router is available for a limited time. Get a quo...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 121"
Y Axis Travel: 61"
Z Axis Travel: 11"
Spindle Speed: 8,100RPM
Spindle Motor: 15HP
Spindle Nose to Table: 2.5" - 13.5"
Max Torque: 48.0 ft-lbf @ 1500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Taper: CT40
Max Weight on Table (evenly distributed): 6000 LBS Distance Between Columns: 62"
Feedrates
Max Cutting: 800 IPM
Rapids on X: 800 IPM
Rapids on Y: 2100 IPM
Rapids on Z: 1100 IPM
Axis Motors
Max Thrust X: 2520 LBF
Max Thrust Y: 1020 LBF
Max Thrust Z: 2050 LBF
Tool Changer
Tool Capacity: 10
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 LBS
Table Size: 122" x 53"
Weight: 19,400
Y Axis Travel: 61"
Z Axis Travel: 11"
Spindle Speed: 8,100RPM
Spindle Motor: 15HP
Spindle Nose to Table: 2.5" - 13.5"
Max Torque: 48.0 ft-lbf @ 1500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Taper: CT40
Max Weight on Table (evenly distributed): 6000 LBS Distance Between Columns: 62"
Feedrates
Max Cutting: 800 IPM
Rapids on X: 800 IPM
Rapids on Y: 2100 IPM
Rapids on Z: 1100 IPM
Axis Motors
Max Thrust X: 2520 LBF
Max Thrust Y: 1020 LBF
Max Thrust Z: 2050 LBF
Tool Changer
Tool Capacity: 10
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 LBS
Table Size: 122" x 53"
Weight: 19,400
Seller:
WaltD132
Location:
MI
