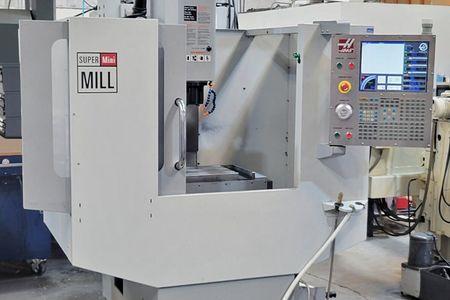

Used HAAS SUPER MINI MILL Vertical Machining Center
This 2002 HAAS MINI MILL Vertical Machining Center is a great choice for any shop looking for a reliable CNC Milling machine. This mini mill machine is equipped with a HAAS CNC Control, making it easy to program and operate. The machine is in good condition and has been well maintained. The machine has a table size of 36" x 12" and a maximum weight capacity of 500 lbs. It has a spindle speed range of 0-6000 RPM and a spindle motor of 7.5 HP. The machine also has a rapid traverse rate of 710 IPM and a cutting feed rate of 0.1-400 IPM. It has a tool changer capacity of 10 tools, but needs some work because the ATC is not currently functioning.The machine is equipped with a coolant system and a chip auger. It also has a manual pulse generator for manual operation. The machine has a maximum travel of 20" x 16" x 16" and a maximum spindle nose to table distance of 17". This 2002 HAAS MINI MILL Vertical Machining Center is a great choice for any shop looking for a small foot print.
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB
Coolant Pump Kit
Early Power Detection
Table Size: 28.75" x 12"
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS
