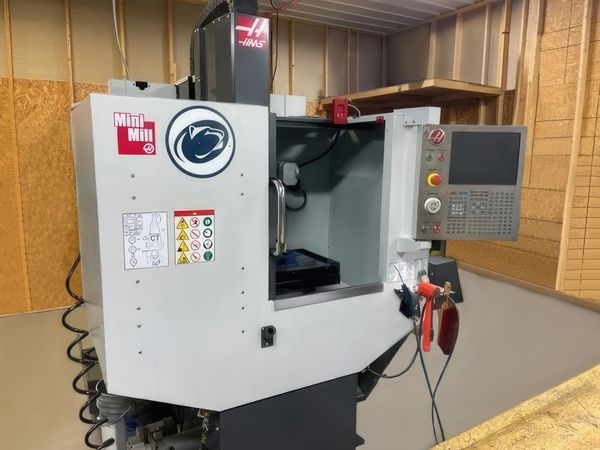

Reserve Met: 2016 HAAS MINI MILL #8398

X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 500 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Table Size: 28.75" x 12"
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS

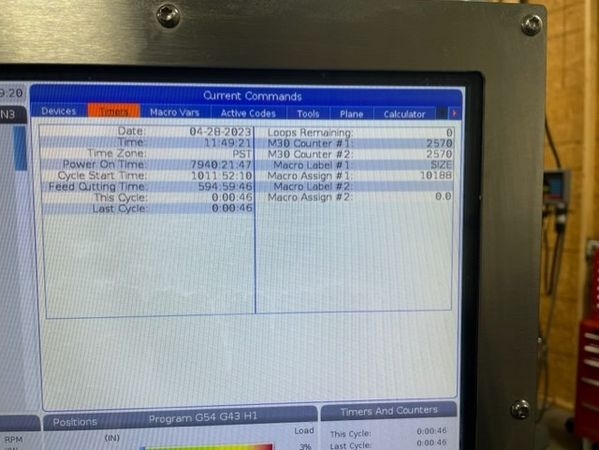

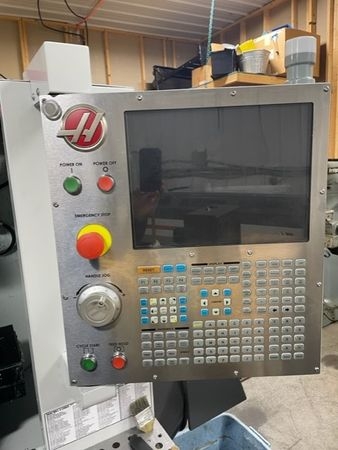

Haas Next Gen CNC Control
Probe
Chip Conveyor
Programmable Coolant
Tool Presetter
Rigid Tapping

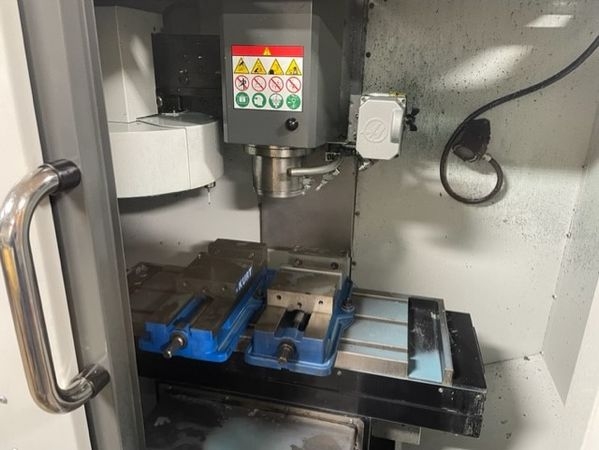

VICES NOT INCLUDED
