2023 HAAS ST10

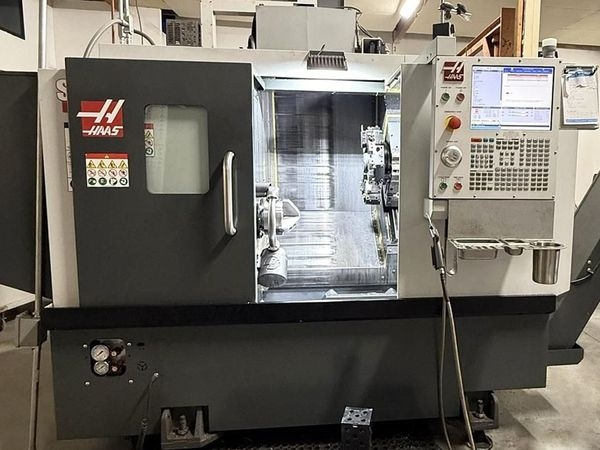

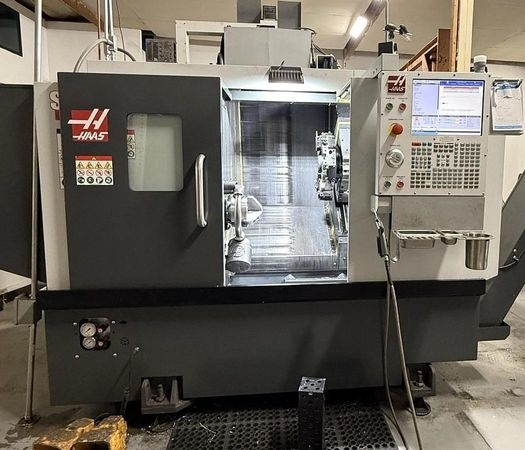

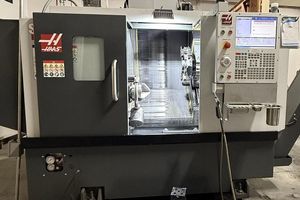

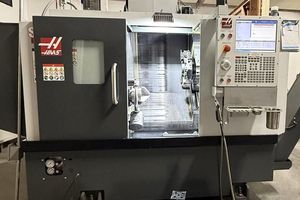

This 2023 HAAS ST-10 is a used CNC lathe designed to meet your machining needs with precision and effectiveness. It comes equipped with a chip conveyor, tool presetter, and tailstock to streamline your operations. The machine remains in great condition, identified by stock number 120589, and is controlled using the Haas NextGen Control for advanced operations.

The Haas ST-10 features a 6.5-inch chuck with a 1.75-inch thru-hole, allowing a maximum swing of 25.25 inches. It has a capacity for a maximum machining diameter of 14 inches and a machining length of up to 14 inches. The X-axis travel extends to 7.88 inches, while the Z-axis covers up to 14 inches, providing flexibility for different workpieces.

This lathe is powered by a robust spindle motor that delivers up to 20 HP, achieving speeds as high as 6,000 rpm with a torque of 75 ft/lbs. It includes 12 bolt-on turret positions, supporting various tooling setups, and can move quickly at rapid traverse rates of 1,200 inches per minute.

The machine dimensions are compact, measuring 92"x55"x69", with a weight of 6,420 lbs, fitting well in many workshop spaces. Its additional features include a 6.5" 3-jaw hydraulic chuck, tailstock with hydraulic quill, spindle orientation, user-definable macros, and a visual part programming system for straightforward operation.

This lathe is also fitted with an enclosure exhaust system, a coolant system with tank and pump, and interfaces like a USB port and RS-232 port. It includes a 15" LCD color monitor and a memory lock keyswitch for secure and modern control operations.

The 2023 Haas ST-10 offers not just advanced features but also includes accessories, such as four boring bar holders and a belt-style chip conveyor. Its total feed cutting time is logged at 1,620 hours, ensuring it is ready for continued productive work on your shop floor.
