2013 HAAS ST20

ID:6021
Brand:HAAS
Model: ST20
Year:2013
Category:CNC Lathe
Location:USA

Located In USA

Hello!

Machine Overview

Specs:

Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13"
Max Turning Length: 21"
Max Swing: 20.75"
Max Thrust X: 4100 lbf
Max Thrust Z: 5,100 lbf
Spindle Nose: A2-6
Coolant Capacity: 55 Gal
Dimensions: 143" x 90" x 92"
Weight: 9,000 LBS

Options:

5C Collet Chuck
10" 3 Jaw Chuck

Description:

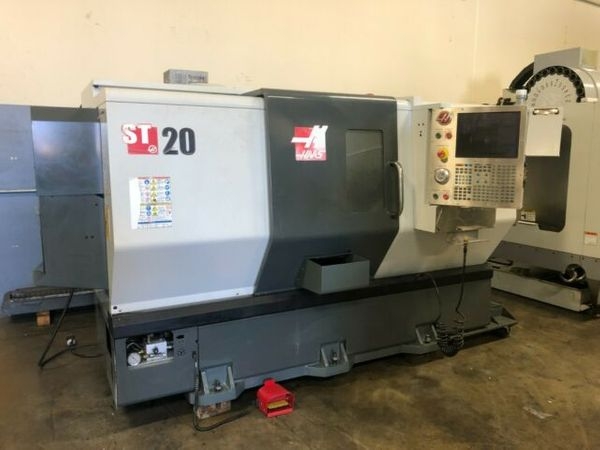

Pre-owned Haas ST20 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Illinois. This Haas CNC Lathe is available for a limited time. Get a quote today on this ST20 before it's gone.
