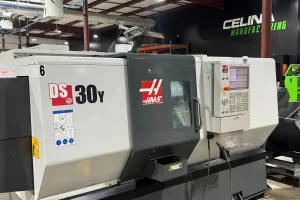

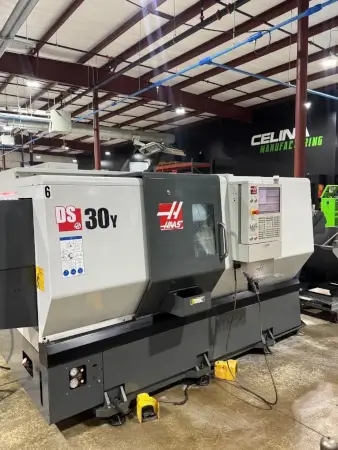

HAAS DS30Y AI Chat
Loading ...

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing Front Apron: 31.8"
Swing Over Cross Slide: 20.8"
Swing Second Spindle: 21.8"
Max Thrust X: 4100 lbf
Max Thrust Y: 2300 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Drive System: Direct Speed
Max Torque: 275 ft-lbf
Spindle Bore ø: 3.50"
Main Spindle: C Axis
Max Rating: 5 hp
Positioning (±): 0.01 °
Brake Clamp Force: 1000 lbf
Brake Diameter: 14.4"
Interpolated Motion and Positioning

SUB SPINDLE:
Chuck Size: 8"
Spindle Nose: A2-5
Drive System: Direct Speed
Max Rating: 20 hp
Max Speed: 4800 rpm
Max Torque: 110 ft-lbf
Spindle Bore: 2"
Bar Capacity: 2"
Boring Bar Rear Clearance: 4"

LIVE TOOLING:
Y Axis: ± 2.0"
Max Speed: 6000 rpm
Drive Ratio: 1:1
Tooling: BMT65
Coolant Capacity: 65gal
Dimensions: 171" x 90" x 92"
Weight: 12,200 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Description:

This 2019 HAAS MILL AUTO PARTS LOADER represents a great opportunity for those in the manufacturing industry looking to add a formidable piece of equipment to their operations. Designed with the user in mind, this loader offers features that simplify the setup and processing of parts, freeing up valuable time and resources.

Built in 2019, this model is configured to seamlessly integrate with a variety of CNC machines, enhancing production capabilities. The machine is engineered for quick, easy loading and unloading, optimizing the workflow on the shop floor. Its compact footprint ensures it requires minimal space, allowing it to fit into various work environments without the need for costly renovations or major changes.

The 2019 HAAS MILL AUTO PARTS LOADER is designed with a user-friendly interface that makes operation straightforward. Even operators who are new to the system can quickly get up to speed, minimizing the time spent on training. All controls are easily accessible, allowing operators to make quick adjustments and reduce downtime.

Thanks to its durable construction, this loader can handle a wide range of industrial tasks, making it a versatile addition to your machinery lineup. The materials and components used in its construction are tested for strength and longevity, ensuring that the loader can withstand the demands of continuous use. This durability makes it a cost-effective choice over time, as it can contribute to reducing overall maintenance and repair costs.

Additionally, the 2019 HAAS MILL AUTO PARTS LOADER is designed to be compatible with several HAAS mill models, providing users with flexibility in its application. This compatibility ensures that users can pair it with existing equipment for a streamlined production line.

Overall, this loader stands as a reliable option for businesses seeking to enhance their production efficiency. With its thoughtful design and robust construction, it is a practical solution made to support the diverse needs of industrial manufacturing environments. For those aiming to elevate their production capabilities, the 2019 HAAS MILL AUTO PARTS LOADER is a worthwhile consideration.
