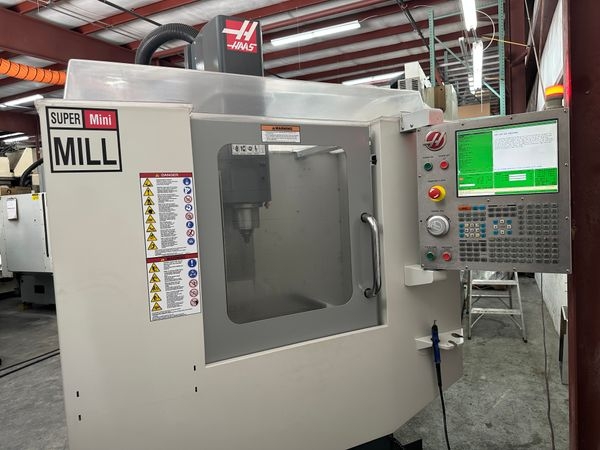

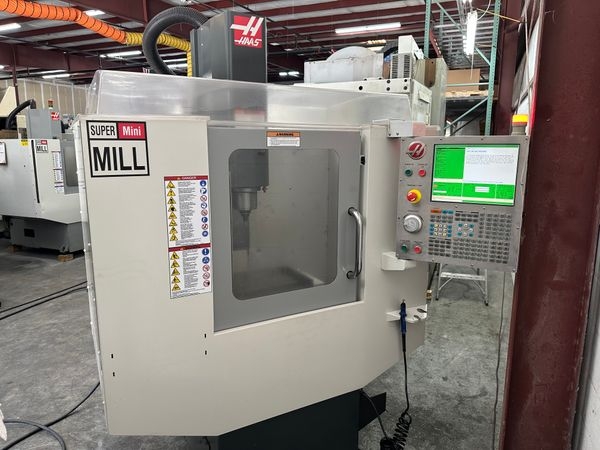

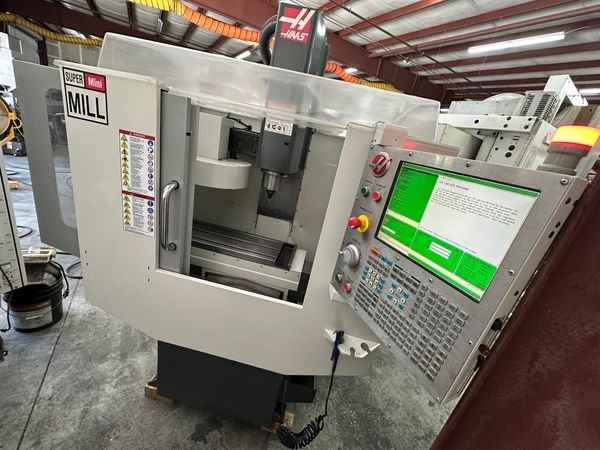

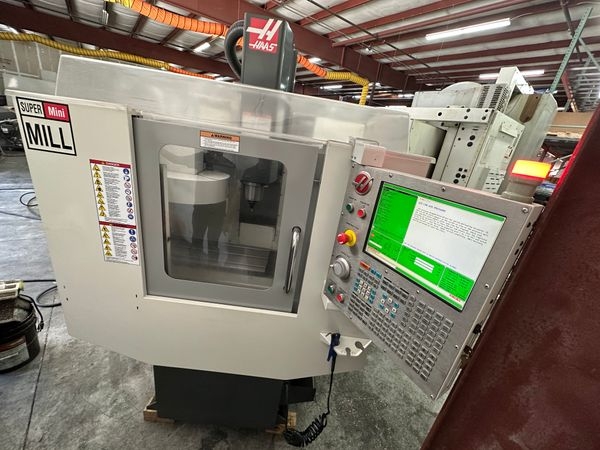

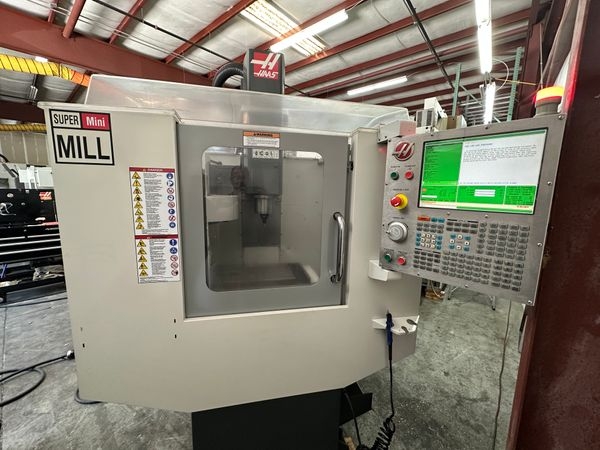

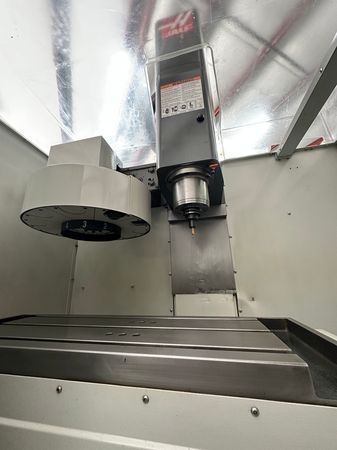

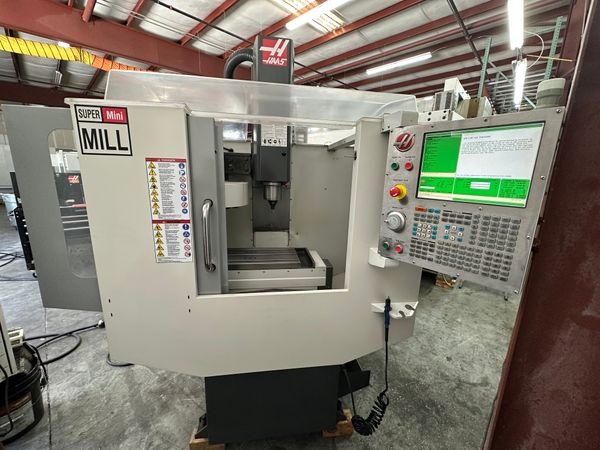

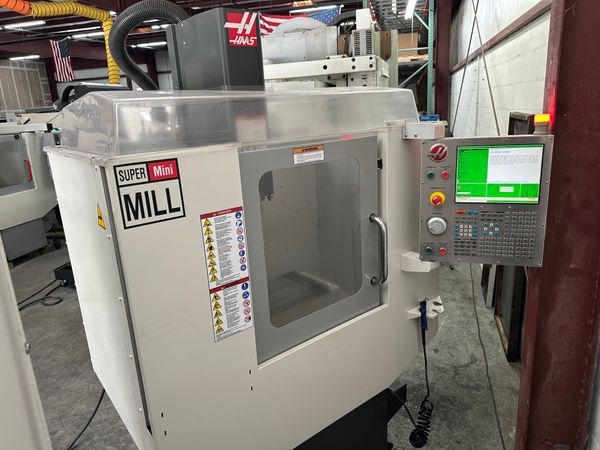

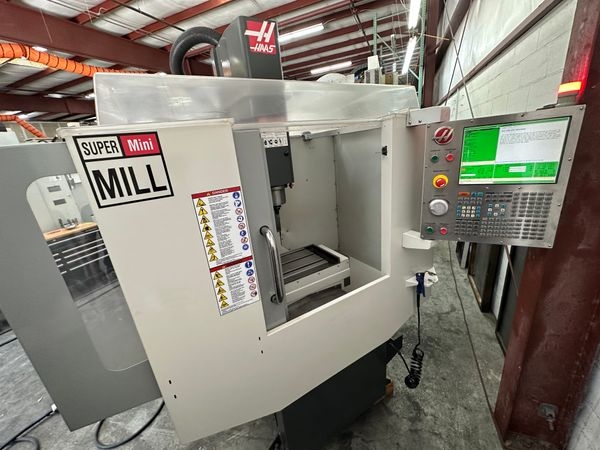

The 2011 HAAS SUPER MINI MILL Vertical Machining Center is perfect for a variety of small high speed machining applications. This machine is designed to provide precise and accurate results with its high-performance spindle ...Read More
Specs:
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB

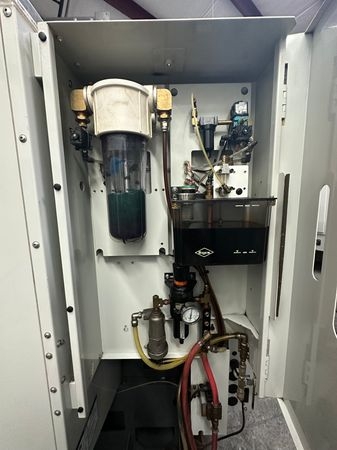

Coolant Pump Kit
Early Power Detection

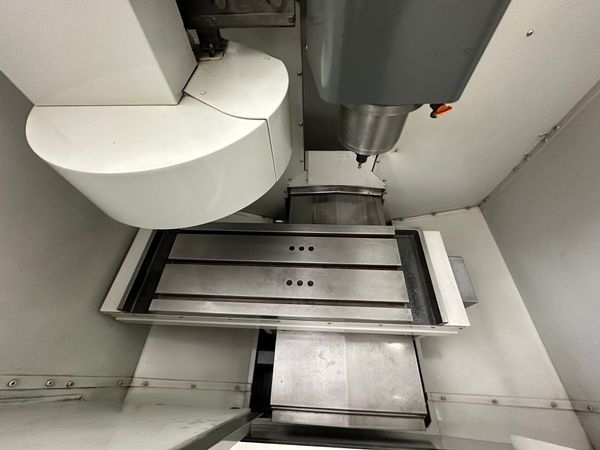

Table Size: 28.75" x 12"
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB
Coolant Pump Kit
Early Power Detection
Table Size: 28.75" x 12"
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS
