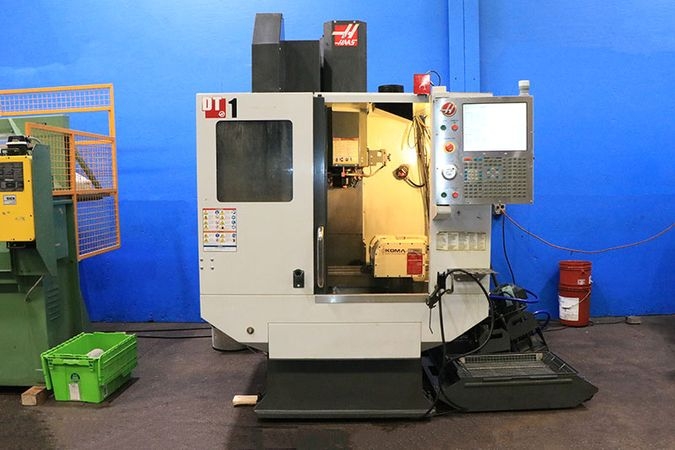

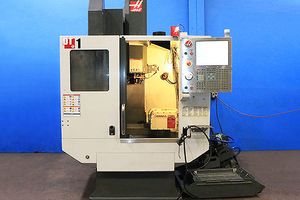

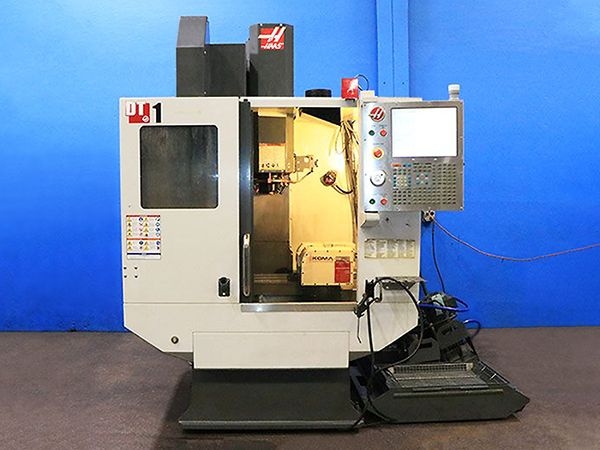

2015 HAAS DT1

Table Size: 26" x 15"
Max Table Load: 250 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Tapping Speed: 5000 rpm
Spindle Taper: BT 30
Tool Changer: 20 + 1 ATC
Rapid Rates X,Y, Z Axis: 2,400 IPM
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2"
Max Tool Length 7"
Chip-to-Chip (avg) 2.4 s
Coolant Capacity 55 gal

Haas CNC Control with 4th & 5th Axes
W.I.P.S. Wireless Probe System
Koma Model TN-101 5th Axis Trunnion Table
Dual Chip Augers
Thru Spindle Coolant
USB Port
Spindle Load Meter
Rigid Tapping

Control Options Include: Coordinate Rotation & Scaling,
DNC, Quick Code, Macros, Spindle Orientation, M19 Spindle Orientation,
Intuitive Programming, Advanced Tool Management

Dimensions: 80" x 100" x 98"
Weight: 5,500 LBS

HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
Koma TN101 5th Axis Trunnion Table
