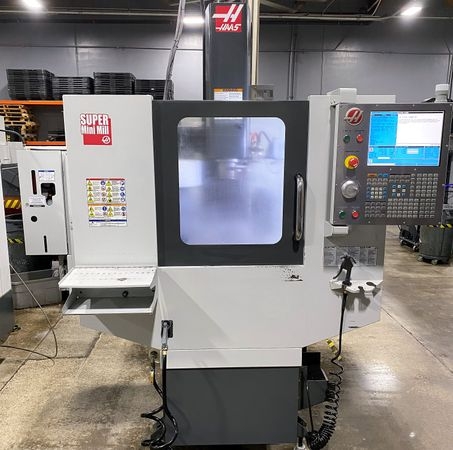

2015 HAAS SUPER MINI MILL

ID:5748
Brand:HAAS
Model: SUPER MINI MILL
Year:2015
Category:Vertical Machining Center
Location:California

Located In California

SHIPPING COST :

Hello!

Machine Overview

Specs:

X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 28.75" x 12"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB
Coolant Pump Kit
Early Power Detection
Dimensions: 68" x 104" x 98"
Weight: 7,200 LBS

Options:

HAAS CNC Control
Programmable Coolant

Description:

Pre-owned HAAS SUPER MINI MILL 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this SUPER MINI MILL before it's gone.
