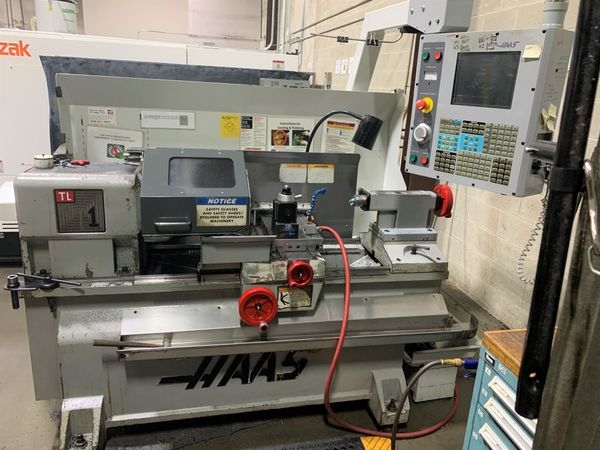

Pre-owned HAAS TL1 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Illinois. This HAAS CNC Lathe is available for a limited time. Get a quote today on this TL1 before it's gone.
Notify Me:
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 12 HP
X Axis Travel: 8"
Z Axis Travel: 30"
Rapid Rate Z Axis: 450 IPM
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 30"
Max Swing: 16"
Spindle Bore 2.3"
Spindle Nose A2-5
Dimensions: 84 x 57 x 79
Weight: 4,300 LBS
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 12 HP
X Axis Travel: 8"
Z Axis Travel: 30"
Rapid Rate Z Axis: 450 IPM
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 30"
Max Swing: 16"
Spindle Bore 2.3"
Spindle Nose A2-5
Dimensions: 84 x 57 x 79
Weight: 4,300 LBS
Options:
Haas CNC Control
Tailstock
Tailstock
