Machine Overview

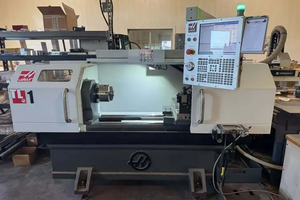

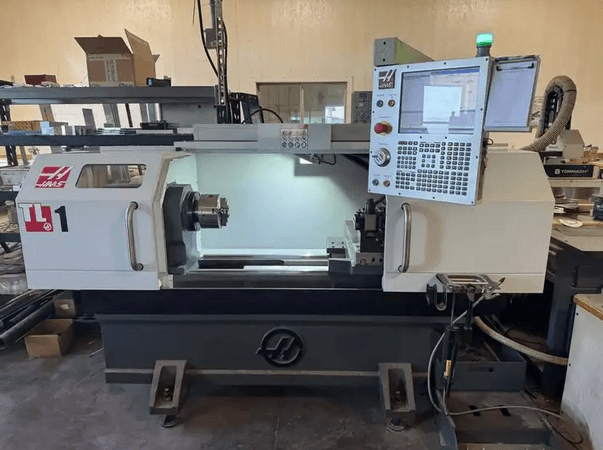

This lightly used 2019 HAAS TL1 is equipped with options to enhance your machining capabilities, including a Tailstock. It's a machine that is more than capable of meeting your basic needs for precision work and tool operation.
The machine's specifications indicate its readiness for various tasks. The HAAS CNC Control ensures you have accurate command over operations. With an 8" 3 Jaw Chuck, you are ready for solid holding capacity during turning tasks. It offers a Maximum Swing over Bed of 16" and a Maximum Swing Over Cross Slide of 8.5". This machine can handle a Maximum Cutting Diameter of 16" and provides a generous Maximum Machining Length of 30".
Further abilities include an X-axis travel capacity of 8" and Z-Axis Travel of 30", with a Spindle Nose / Spindle Bore size of A2-5" / 2.31". Achieving Spindle Speeds of up to 2,000 RPM complements your production demands, powered by a 12 HP Spindle Motor. The 4 Sided Tool Post accommodates different tools, and the Rapid Traverse Rates of 75 IPM for the X axis and 150 IPM for the Z axis contribute to overall operational efficiency.
The machine measures 88" x 56" x 75" and weighs 4,100 lbs. Additional features include an 8" 3 Jaw Manual Chuck, Haas Visual Part Programming Software, and a coolant system complete with a tank and pump. Its Integral Chip-Flow Channel reduces downtime by managing debris efficiently. Full Enclosure Doors ensure safe operation, while a USB Port Interface and RS 232 Port Interface offer ease of connectivity.
The system also includes a work light for better visibility and can be wired for either single-phase or three-phase electrics, offering flexible installation options. Remarkably, this machine shows almost no use, ensuring you are getting a functional unit ready for action.
