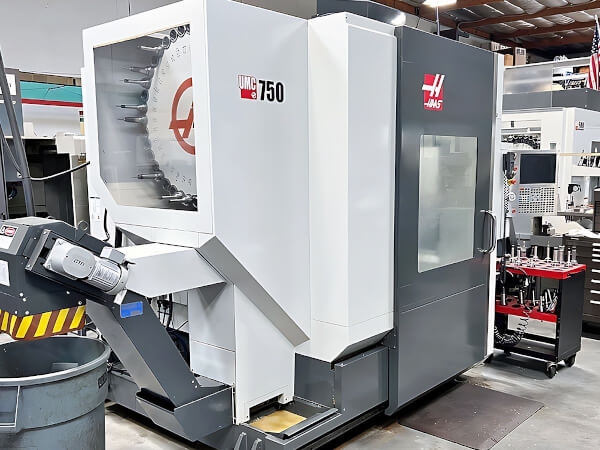

This 2014 HAAS UMC750 is packed with a host of features that make it an ideal choice for anyone in need of a robust and high performing machine. First and foremost, it comes with a Probe, 5 Axis, and a Chip Conveyor. These op...Read More
Notify Me:
Specs:
PLATTER DIAMETER: 500.38 mm
X-AXIS TRAVEL: 762 mm
Y-AXIS TRAVEL: 508 mm
Z-AXIS TRAVEL: 508 mm
B-AXIS (TILT) TRAVEL: +110 DEGREES / -35 DEGREES
C-AXIS (ROTATION) TRAVEL: 360 DEGREES
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 22.4 kW
SPINDLE TAPER: CAT 40
TOOL CAPACITY (ATC): 40
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-SPINDLE COOLANT (300 PSI)
SIDE-MOUNT TOOL CHANGER (40 ATC)
12,000 RPM SPINDLE
CHIP CONVEYOR
REMOTE JOG HANDLE
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
INTUITIVE PROGRAMMING SYSTEM (IPS)
COORDINATE ROTATION & SCALING
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB
750MB MEMORY** AS OF AUGUST 2024, SPINDLE TIME 3,277 HOURS** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $205,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE\** WORKHOLDING SHOWN ON THE TABLE IS NOT INCLUDED WITH THE MACHINE
X-AXIS TRAVEL: 762 mm
Y-AXIS TRAVEL: 508 mm
Z-AXIS TRAVEL: 508 mm
B-AXIS (TILT) TRAVEL: +110 DEGREES / -35 DEGREES
C-AXIS (ROTATION) TRAVEL: 360 DEGREES
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 22.4 kW
SPINDLE TAPER: CAT 40
TOOL CAPACITY (ATC): 40
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-SPINDLE COOLANT (300 PSI)
SIDE-MOUNT TOOL CHANGER (40 ATC)
12,000 RPM SPINDLE
CHIP CONVEYOR
REMOTE JOG HANDLE
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
INTUITIVE PROGRAMMING SYSTEM (IPS)
COORDINATE ROTATION & SCALING
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB
750MB MEMORY** AS OF AUGUST 2024, SPINDLE TIME 3,277 HOURS** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $205,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE\** WORKHOLDING SHOWN ON THE TABLE IS NOT INCLUDED WITH THE MACHINE
Options:
HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
