Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 40+1 ATC

B AXIS: ROTATION
Travel: 120° to -35°
Max Speed: 150 °/sec
Max Torque: 1200 ft-lbf
Brake Torque: 4300 ft-lbf

C AXIS: ROTATION
Travel: 360 °
Max Speed: 150 °/sec
Max Torque: 450 ft-lbf
Brake Torque: 3300 ft-lbf
Max Swing: 27"

Options:
Chip Conveyor
Coolant Thru Spindle
5 Axis
Midaco Pallet Changer
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
Compensation Tables
Macros
Rotation and Scaling
Dynamic Work Offsets (DWO) and Tool Center Point Control (TCPC)
Rigid Tapping
Description:

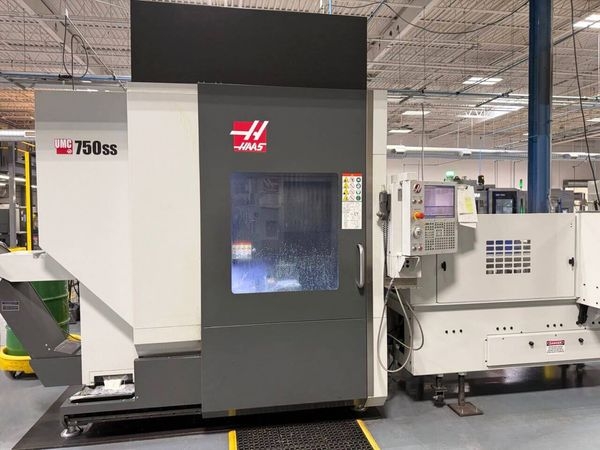

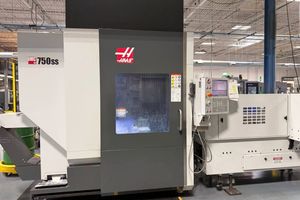

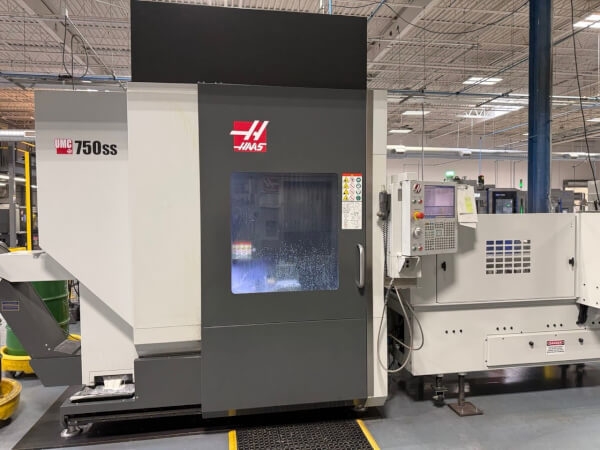

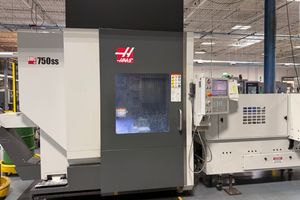

This 2018 HAAS UMC750SS is a fine machine designed for precision and versatility. Known for getting complex jobs done, it serves a vital role in workshops.

Equipped with a chip conveyor, this feature is practical for handling waste without slowing down the core operations. The machine's chip handling process means less downtime in the workshop.

The coolant thru spindle option is a standout feature, providing targeted cooling during operation. This helps in maintaining workpiece quality by reducing heat build-up that could cause unwanted distortions.

The 5-axis capability turns this machine into a flexible tool for any production requirement. Whether dealing with angular cuts or complex forms, the 5-axis adds a layer of adaptability hard to find in machines restricted by fewer axes.

This HAAS UMC750SS is a model known in the industry for its capability. Built to handle jobs with ease, you'll find it a fitting addition to meet your machining needs.
