Machine Overview

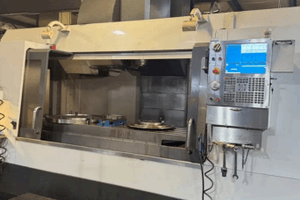

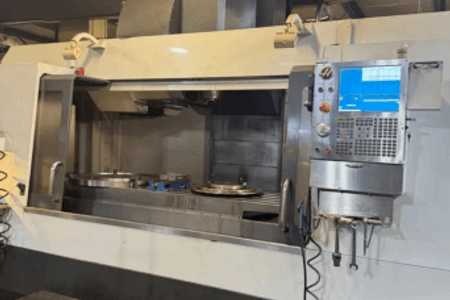

This 2021 HAAS VF11 is a high-quality used CNC machine that's ready to meet the demands of your workshop. It comes equipped with a Programmable Coolant option to optimize your machining processes.
The machine features the Haas Next Generation Control for straightforward operation. The table size is 120 inches by 28 inches, and it can handle a table capacity of up to 4,000 lbs. With machine travels of 120 inches in the X-axis, 40 inches in the Y-axis, and 30 inches in the Z-axis, it provides substantial room for machining large parts.
The spindle is a Cat 40 taper with speeds up to 15,000 RPM and an inline direct drive transmission. It offers rapid traverse rates of 360 inches per minute on the X-axis and 600 inches per minute on the Y and Z axes. The maximum cutting feed rate is 360 inches per minute.
This CNC machine is equipped with a side mount, twin-arm tool changer that holds 30 tools plus one spare station. The tool change time is a swift 2.8 seconds from tool to tool, and it supports a maximum tool weight of 12 lbs.
The spindle drive is powered by a 20 hp motor and requires a 220V, 3-phase power supply. The spindle to table distance ranges from 4 inches to 34 inches, accommodating various part sizes.
With approximate machine dimensions of 288 inches in length, 116 inches in width, and 129 inches in height, this model weighs around 29,400 lbs, confirming its robust build quality.
The HAAS VF11 comes equipped with several advanced features. It includes a Wireless Intuitive Probing System with a Renishaw Parts Probe and Tool Setter, which enhances machining accuracy. Other features are Rigid Tapping, Macros, Rotation & Scaling, Spindle Orientation, and 1GB Memory for improved operation. It also has Compensation Tables, an Auto Air Gun, a USB Port for easy data transfer, and a Remote Jog Handwheel with an LCD Screen.
Additionally, it includes a 30-station Automatic Tool Changer, Programmable Coolant, a Standard Coolant System, and a Chip Auger for effective chip management. The machine comes with keys and all the necessary equipment for a smooth setup.
