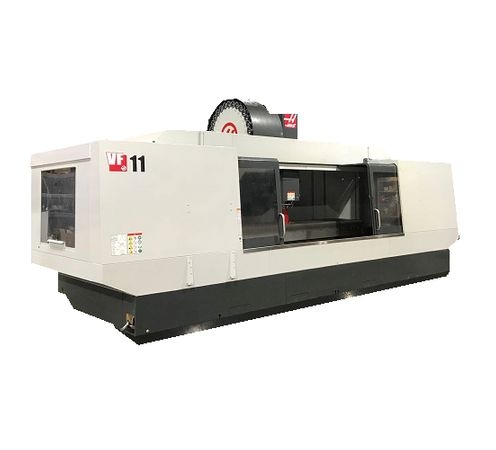

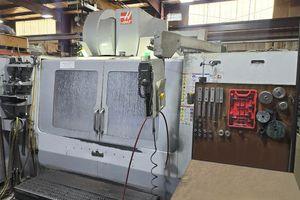

Used HAAS VF11-50 Vertical Machining Center

Pre-owned HAAS VF11-50 2018 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time.Get a quote today on this VF11-50 before it's gone.

Specs:
X Axis Travel: 150"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 120" X 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Cutting 360 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 288" x 102" x 132"
Weight: 36,000 LBS
Options:
HAAS CNC Control
Probe
Owner:
Todd (Located in USA)
