Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Weight: 7,800 LBS
Options:
Haas Control
Programmable Coolant
4th Axis Rotary Table
4th Axis Rotary Table
Chip Auger
Description:

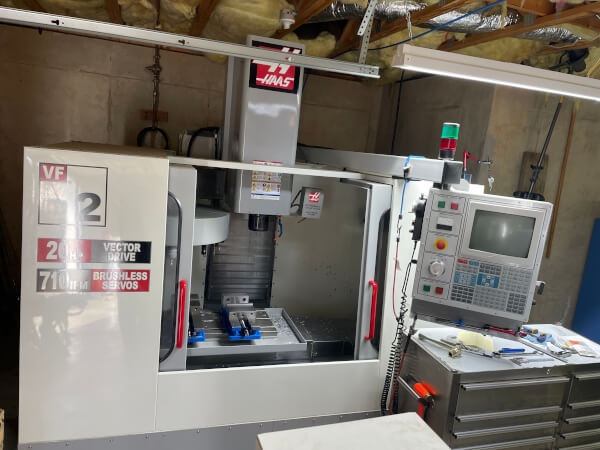

Available for immediate purchase is a 1998 HAAS VF2 Vertical Machining Center. Not just a standard machine, this vertical machining center is made by a highly reputable manufacturer, Haas Control, renowned for its top-quality and innovative machine tools. The VF2 model is a product of a long evolution in design and technology, reflective of the expert craftsmanship the company possesses. Fit for its role in any workspace, it commands an imposing presence without sacrificing efficiency of space – a footprint that is simultaneously compact and robust.

Has been in service for years, the 1996 Haas VF2 Vertical Machining Center presents a heavyweight performer in a compact package. Operational with a 20 HP Vector Drive, its robust horsepower provides a high level of operation, making it quite ideal for tackling projects requiring substantial strength and speed. Powered by a 40/30 engine, it smoothly does its work, reducing time delays and ensuring the finished product is of high quality.

As a standout in its field, it comes loaded with a host of desirable features that elevate its functionality and ease of use. Among these is a programmable coolant nozzle system built into the framework. Such a feature can focus on areas that require more cooling, thereby increasing the accuracy of the operations. This system aids in maintaining the precision of work, all while minimizing wear on tools during use. This prowess in cooling keeps the machine within a controllable temperature by dousing heat and can make a big difference in the productivity and operational efficiency of the equipment.

Another amazing upgrade is the 4th-axis rotary table. Specially designed to ensure the ability to undertake detailed work easily, it provides the machine with additional versatility and accuracy, as it can rotate materials to various angles for precision machining. This upgrade opens up a new dimension of workmanship, allowing the machining of complex parts in a single palm without pause, letting you save time while maximizing productivity.

In conclusion, this 1996 HAAS VF2 Vertical Machining Center offers a wealth of features matched with a level of craftsmanship that places it in a league of its own. Not only does it provide top-of-the-line performance, but it also brings marked improvements in the ease of use, controller functionality, eco-friendly design, and overall productivity. Investing in this machine would significantly heighten your machining capability and deliver impressive results in a variety of applications.
