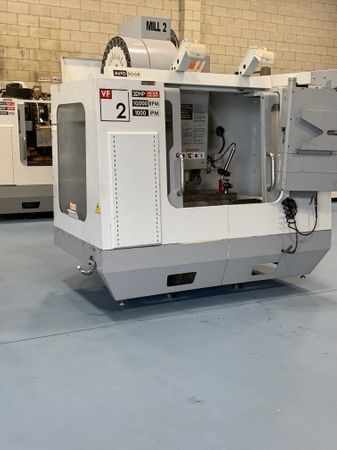

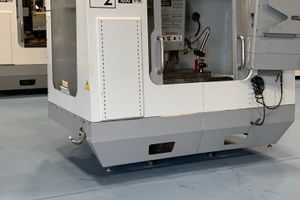

Pre-owned HAAS VF2 2007 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in California. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2 before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 ATC
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Options:
Haas CNC Control
Programmable Coolant
Chip Auger
Air Blast
24+1 Side Mount Tool Changer
upgraded 10,000 RPM Spindle
Probing (Wireless Intuitive Probing System: Renishaw)
4th Axis Wiring
Haas T5C 5th axis available for purchase
Programmable Coolant
Chip Auger
Air Blast
24+1 Side Mount Tool Changer
upgraded 10,000 RPM Spindle
Probing (Wireless Intuitive Probing System: Renishaw)
4th Axis Wiring
Haas T5C 5th axis available for purchase
