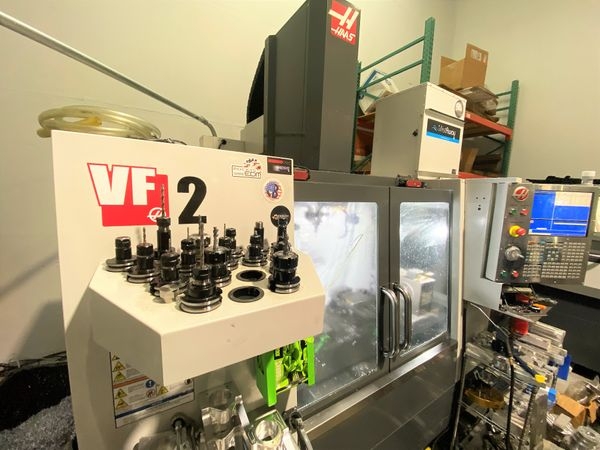

Pre-owned HAAS VF2 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2 before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
Options:
HAAS CNC Control
Probe
4th Axis Rotary Table
Chip Auger
High Speed Machining
HRT160 4th Axis Rotary Table
WIPS Probe
4th Axis Drive
Probe
4th Axis Rotary Table
Chip Auger
High Speed Machining
HRT160 4th Axis Rotary Table
WIPS Probe
4th Axis Drive
