Seller Needs:
$35,500|
249
|
5

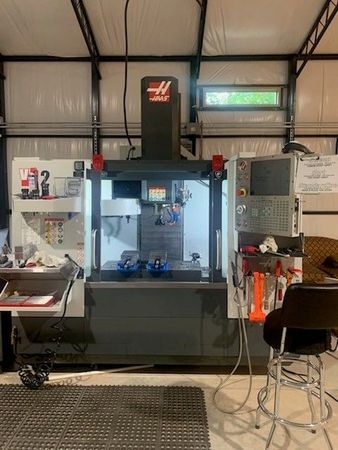

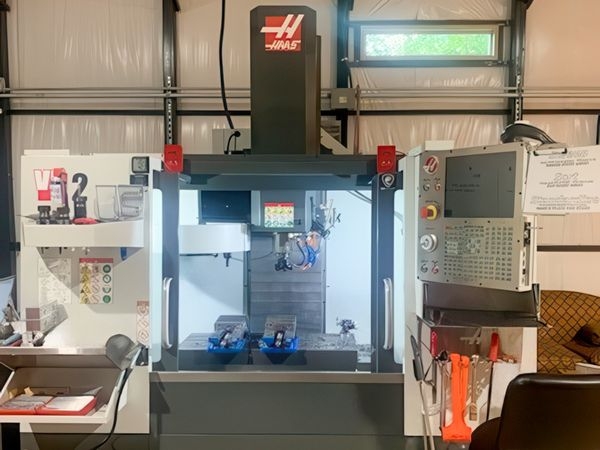

This 2017 HAAS VF2 Vertical Machining Center offers both versatility and precision. Equipped with the Haas Next Gen CNC Control, this machine ensures seamless operation and user-friendly navigation.
The included options and u...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Weight: 7,500 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Weight: 7,500 LBS
Options:
Haas Next Gen CNC Control
Probe
High Speed Machining
Auto Air Gun
Probe
High Speed Machining
Auto Air Gun
Seller:
JeffH121
Location:
OK
