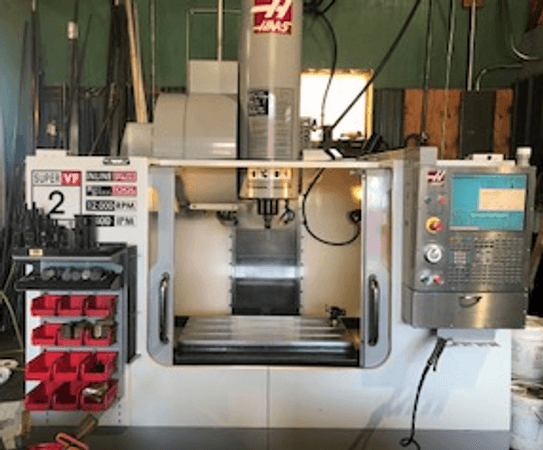

Pre-owned HAAS VF2SSYT 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in New York. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SSYT before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
100 HOURS!
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
100 HOURS!
Options:
Probe
4th Axis Rotary Table
(18) Kennametal DA Collet Chucks
(8) Kennametal TG Collet Chucks
(6) Parlec EROS Collet Chucks
(2) Kennametal Tapping Chucks
(1) Set of DA Collets
(1) Set of TG Collets
(10) EROS Collets Misc Tap Collets
(1) Teco Hold down Set
4th Axis Rotary Table
(18) Kennametal DA Collet Chucks
(8) Kennametal TG Collet Chucks
(6) Parlec EROS Collet Chucks
(2) Kennametal Tapping Chucks
(1) Set of DA Collets
(1) Set of TG Collets
(10) EROS Collets Misc Tap Collets
(1) Teco Hold down Set
