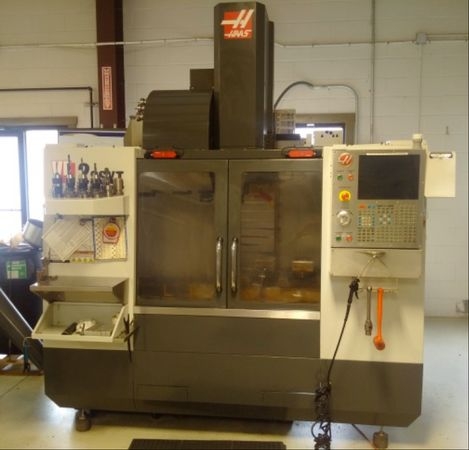

Used HAAS VF2SSYT Vertical Machining Center
Pre-owned HAAS VF2SSYT 2011 Vertical Machining Center for only $69,000. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in GA. This HAAS Vertical Machining Center is the only one in stock and available for a limited time. Get a quote today on this VF2SSYT before it's gone.
Specifications:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Spindle Motor: 30 HP
Max Table Load: 1,500 LBS
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Spindle Motor: 30 HP
Max Table Load: 1,500 LBS
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Equipped With:
HAAS CNC Control
Seller:
Curt (Machine Shop in USA)
