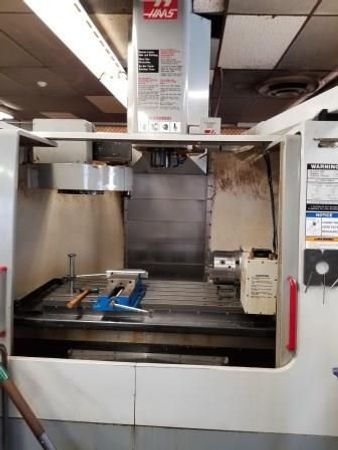

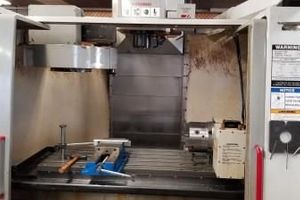

Pre-owned HAAS VF3 2004 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Pennsylvania. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF3 before it's gone.
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48 x 18
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: CT40
Tool Changer: 20 ATC
Dimensions: 118 x 74 x 120
Weight: 12,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48 x 18
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: CT40
Tool Changer: 20 ATC
Dimensions: 118 x 74 x 120
Weight: 12,500 LBS
Options:
Programmable Coolant
2 Speed Gear Box
Spindle Orientation
Floppy Drive
Visual Quick Code
2 Speed Gear Box
Spindle Orientation
Floppy Drive
Visual Quick Code
