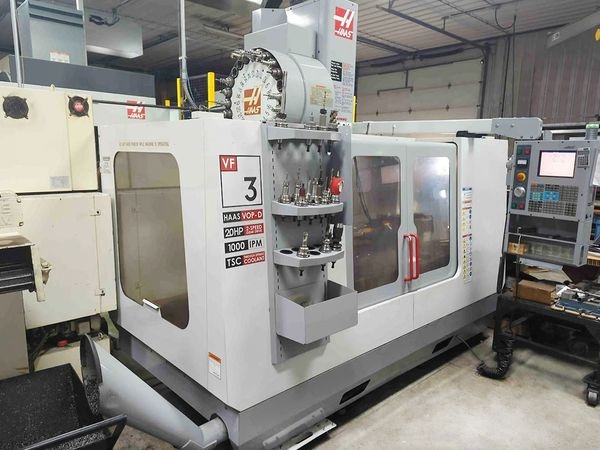

Pre-owned HAAS VF3 2004 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center ...Read More
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Table Size: 48" x 18"
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Table Size: 48" x 18"
Weight: 11,720 LBS
Options:
Coolant Thru Spindle
4th Axis Rotary Table
Parts Air Blast
Remote Job Handle
Rigid Tapping
Wired for PCool: Programmable Coolant (unit not included)
2-Speed Gear Box
Chip Auger
4th Axis Wired
HRT210 4th Axis, included
4th Axis Rotary Table
Parts Air Blast
Remote Job Handle
Rigid Tapping
Wired for PCool: Programmable Coolant (unit not included)
2-Speed Gear Box
Chip Auger
4th Axis Wired
HRT210 4th Axis, included
