Home / Vertical Machining Center / HAAS / VF3 / 4377
Posted By ChriW677
us-flag
Located In Pennsylvania
machine-hours
Cut Time 2295 Hours
SHIPPING COST :
Hello!

Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC SIDE
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 102"
Weight: 13,500 LBS
Options:
Haas CNC Control
Coolant Thru Spindle
5 Axis
40+1 Side ATC
1,000 PSI Pump (TSC option)
4th and 5th Axis Drives
5 Axis T5C Model
Description:

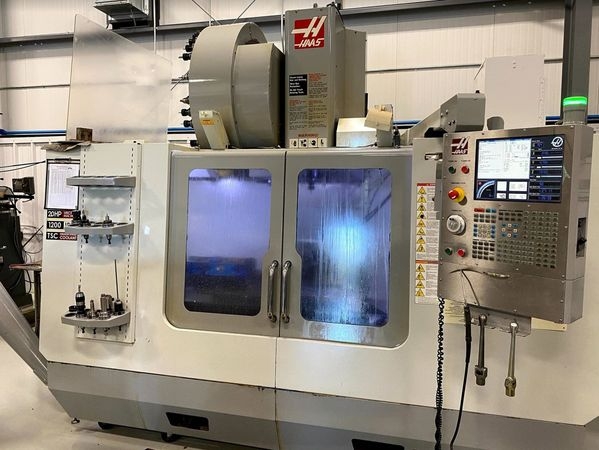

Pre-owned HAAS VF3 2008 Vertical Machining Center. This Vertical Machining Center has Cut Time 2295 cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Pennsylvania. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF3 before it's gone.

Machine Comps

See Price Guide
What's Your CNC Price?
Track any CNC machine's value for free on cncmachines.com.
