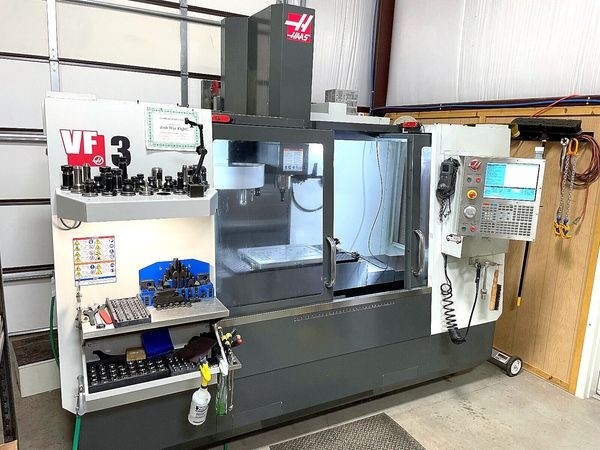

Offered for sale is a sharp, well-maintained 2013 HAAS VF3 Vertical Machining Center. This sturdy, American-made machine boasts a variety of features, making it an ideal fit for nearly any manufacturing application. Equipped...Read More
Notify Me:
Rigging:
$2,500
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Table Size: 48" x 18"
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Table Size: 48" x 18"
Weight: 11,720 LBS
Options:
Probe
Thru Tool Air Blast
Renishaw Probing System
Renishaw OTS Probe Riser Block
Upgraded 10k RPM spindle
High Intensity Lighting
Thru Tool Air Blast
Renishaw Probing System
Renishaw OTS Probe Riser Block
Upgraded 10k RPM spindle
High Intensity Lighting
