Seller Needs:
$66,000|
12148
|
0

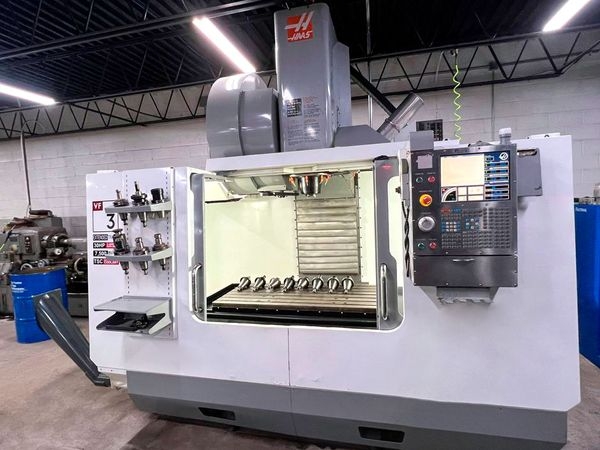

Pre-owned HAAS VF3YT-50 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 20 ATC
Table Size: 54" x 24"
Weight: 16,500 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 20 ATC
Table Size: 54" x 24"
Weight: 16,500 LBS
Options:
HAAS CNC Control
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Pre Wired for 4th Axis
Pre Wired for 5th Axis
Auto Doors
Extra Y Axis Travel
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Pre Wired for 4th Axis
Pre Wired for 5th Axis
Auto Doors
Extra Y Axis Travel
Seller:
BrenM762
Location:
WV
