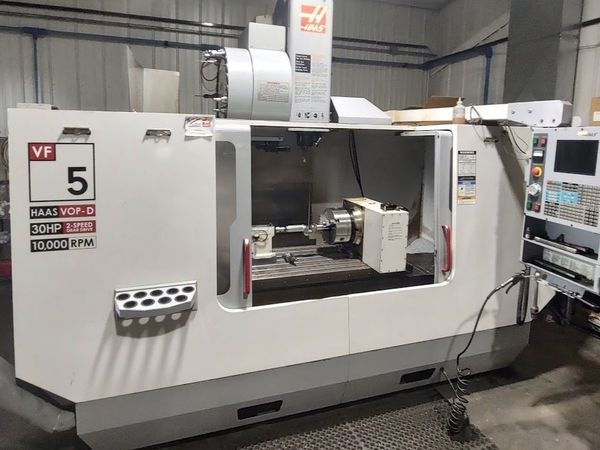

Pre-owned HAAS VF5 2004 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center ...Read More
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 54" x 24"
Dimensions: 168" x 101" x 109"
Weight: 12,700 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 54" x 24"
Dimensions: 168" x 101" x 109"
Weight: 12,700 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Rigid Tapping
Visual Quick Code
10k RPM Spindle
2 Speed Gearbox
User Definable Macros
4th Axis Wiring
Spindle Orientation
HRT-210 With Tailstock
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Rigid Tapping
Visual Quick Code
10k RPM Spindle
2 Speed Gearbox
User Definable Macros
4th Axis Wiring
Spindle Orientation
HRT-210 With Tailstock
