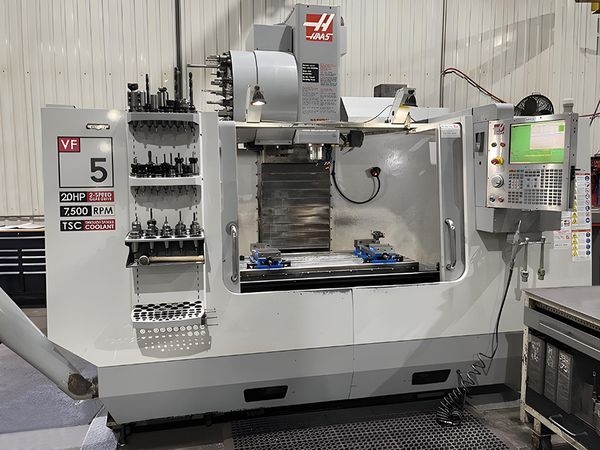

Pre-owned HAAS VF5 2009 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Georgia. This HAAS Vertical ...Read More
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 ATC
Max Cutting: 500 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 4100 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 54" x 24"
Weight: 13,000 LBS
Dimensions: 168" x 101" x 109"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 ATC
Max Cutting: 500 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 4100 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 54" x 24"
Weight: 13,000 LBS
Dimensions: 168" x 101" x 109"
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
2 Speed Gear Box
Side Mount Tool Changer
4th Axis Drive
Remote Jog Handle
Auxiliary Coolant Filter System/ TSC 300psi
High Intensity Lighting
Chip Auger
Rigid Tapping
Probe
Coolant Thru Spindle
Programmable Coolant
2 Speed Gear Box
Side Mount Tool Changer
4th Axis Drive
Remote Jog Handle
Auxiliary Coolant Filter System/ TSC 300psi
High Intensity Lighting
Chip Auger
Rigid Tapping
