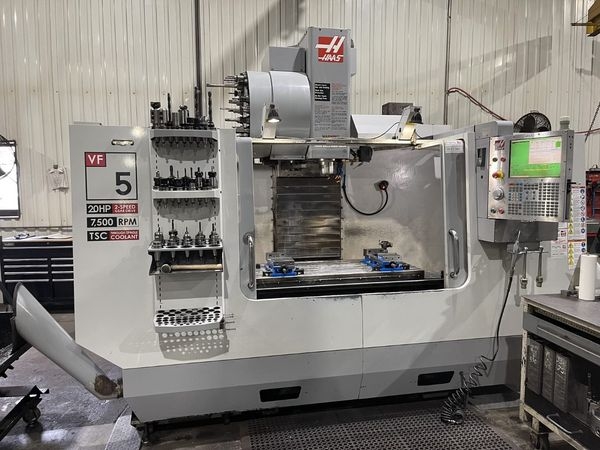

Pre-owned HAAS VF5 2009 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center ...Read More
Notify Me:
Specs:
X Axis Travel: 50"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 + 1 ATC
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 54" x 24"
Dimensions: 168" x 101" x 109"
Weight: 12,700 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 + 1 ATC
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 54" x 24"
Dimensions: 168" x 101" x 109"
Weight: 12,700 LBS
Options:
Probe
Coolant Thru Spindle
Programmable Coolant
Side Mount Tool Changer
2 Speed Gear Box
WIPS
Chip Auger
4th Axis Drive
Enhanced Remote Jog Handle
High Intensity Lighting
Auxiliary Coolant Filter System
Tool Tray
TSC 300 PSI
Coolant Thru Spindle
Programmable Coolant
Side Mount Tool Changer
2 Speed Gear Box
WIPS
Chip Auger
4th Axis Drive
Enhanced Remote Jog Handle
High Intensity Lighting
Auxiliary Coolant Filter System
Tool Tray
TSC 300 PSI
