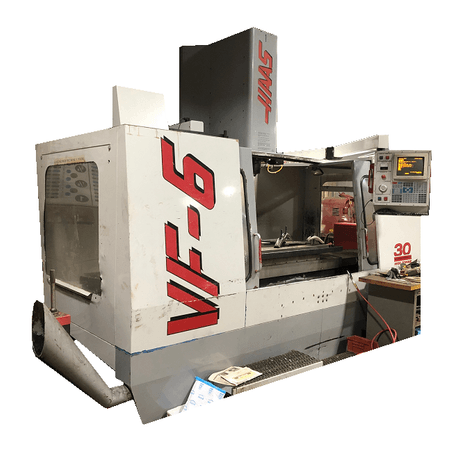

Pre-owned HAAS VF6 1997 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC control. This CNC Machine is currently located in Illinois. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF6 before it's gone.
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64 x 28
Max Table Load: 4,000 LBS
Spindle Motor: 30.00 HP
Spindle Speed: 7,500 RPM
Spindle Taper: #50 CT
Tool Changer: 20+1 ATC
Dimensions: 118 x 110 x 117
Weight: 12,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64 x 28
Max Table Load: 4,000 LBS
Spindle Motor: 30.00 HP
Spindle Speed: 7,500 RPM
Spindle Taper: #50 CT
Tool Changer: 20+1 ATC
Dimensions: 118 x 110 x 117
Weight: 12,500 LBS
Options:
Haas CNC
Probe
Coolant Thru Spindle
4th Axis Drive
Rigid Tapping
Chip Auger
CAT50 Taper
Probe
Coolant Thru Spindle
4th Axis Drive
Rigid Tapping
Chip Auger
CAT50 Taper
