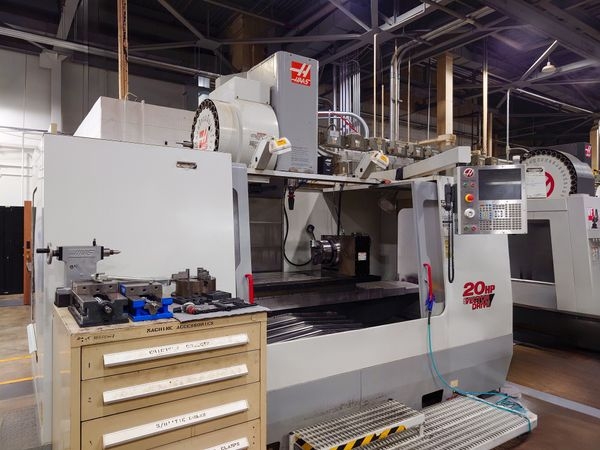

This 2001 HAAS VF6-40TR Vertical Machining Center is a top pick for anyone looking for a machine that can do many jobs with ease. It's used, but it's very good at its work. It helps in building parts for cars, airplanes, and ...Read More
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Dimensions: 195" x 102" x 130"
Weight: 22,300 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Dimensions: 195" x 102" x 130"
Weight: 22,300 LBS
Options:
HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
High intensity lights
Tailstock
4th Axis Table
Brushless 5th Axis Drive and Wiring
High Speed Machining
Rigid Tapping
Rotational & Scaling
Updated 2017 Haas Control
Probe
Programmable Coolant
4th Axis Rotary Table
High intensity lights
Tailstock
4th Axis Table
Brushless 5th Axis Drive and Wiring
High Speed Machining
Rigid Tapping
Rotational & Scaling
Updated 2017 Haas Control
