Seller Needs:
$49,500|
35
|
1

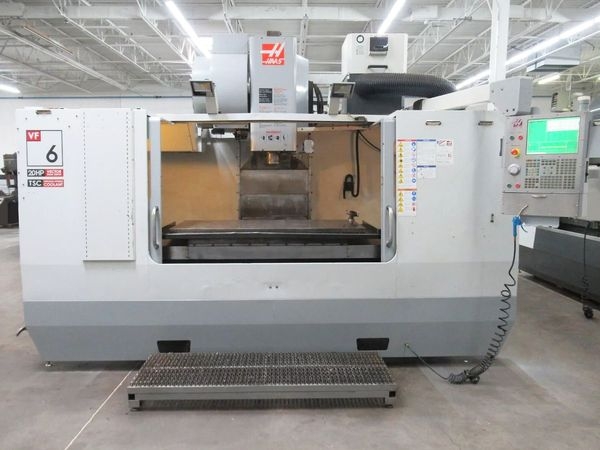

Pre-owned HAAS VF6 2007 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Minnesota. This HAAS Vertica...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Options:
HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Probe
Chip Conveyor
Coolant Thru Spindle
Seller:
JillH870
Location:
MN
