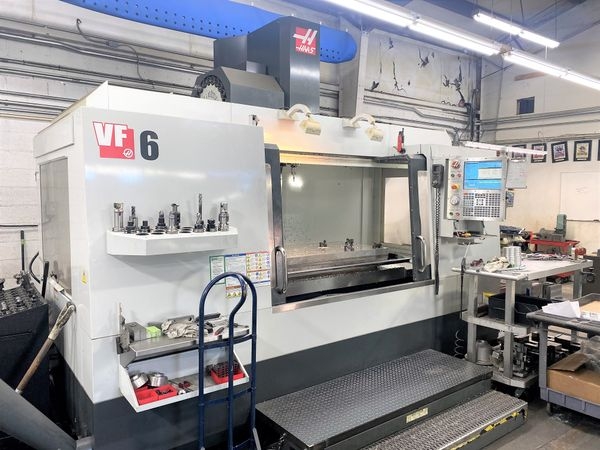

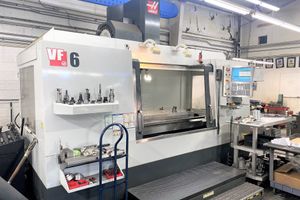

Used HAAS VF6 Vertical Machining Center
Pre-owned HAAS VF6 2011 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in North Carolina. This HAAS Vertical Machining Center is available for a limited time.Get a quote today on this VF6 before it's gone.
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 in/min
Max Thrust X 3400 lb
Max Thrust Y 3400 lb
Max Thrust Z 5600 lb
Tool-to-Tool 2.8 sec
Chip-to-Chip 3.6 sec
Dimensions: 195" x 102" x 130"
Weight: 22,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 64" x 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 in/min
Max Thrust X 3400 lb
Max Thrust Y 3400 lb
Max Thrust Z 5600 lb
Tool-to-Tool 2.8 sec
Chip-to-Chip 3.6 sec
Dimensions: 195" x 102" x 130"
Weight: 22,500 LBS
Options:
HAAS CNC Control
Programmable Coolant
10K RPM
Aluminum Bed Pan Included
Programmable Coolant
10K RPM
Aluminum Bed Pan Included
Owner:
Tommy (Machine Shop in USA)
