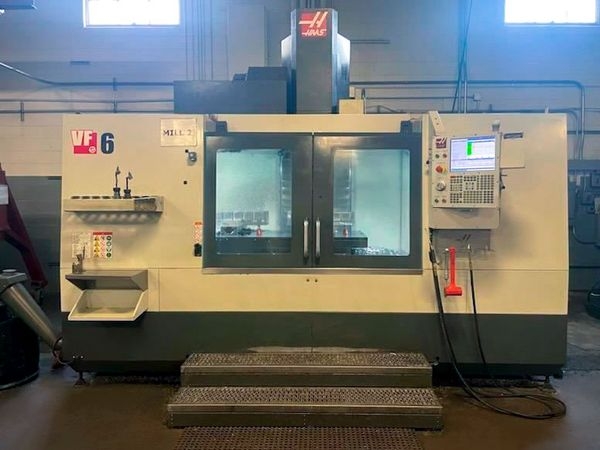

Pre-owned HAAS VF6 2019 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Mach...Read More
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 in/min
Max Thrust X 3400 lb
Max Thrust Y 3400 lb
Max Thrust Z 5600 lb
Tool-to-Tool 2.8 sec
Chip-to-Chip 3.6 sec
Table Size: 64" x 28"
195”x102”x130”
22,300
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 in/min
Max Thrust X 3400 lb
Max Thrust Y 3400 lb
Max Thrust Z 5600 lb
Tool-to-Tool 2.8 sec
Chip-to-Chip 3.6 sec
Table Size: 64" x 28"
195”x102”x130”
22,300
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
300 psi- thru spindle coolant
10,000 rpm Cat40 30HP spindle
High Speed Machining
Linear Scales
Auxiliary Coolant Filter
Through-Tool Air Blast
Chip Auger
Probe
Coolant Thru Spindle
300 psi- thru spindle coolant
10,000 rpm Cat40 30HP spindle
High Speed Machining
Linear Scales
Auxiliary Coolant Filter
Through-Tool Air Blast
Chip Auger
