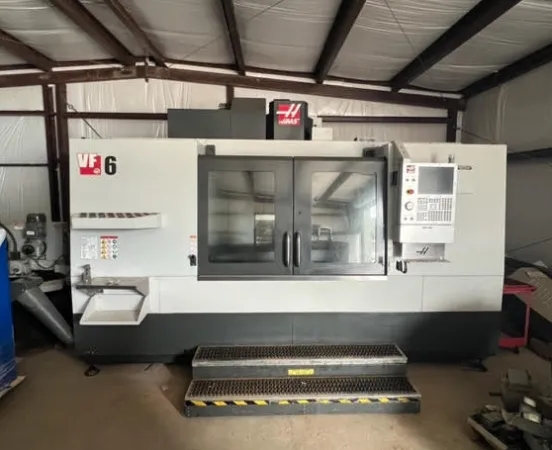

If you are seeking to advance your machining operations and productivity, this 2019 HAAS VF6 Vertical Machining Center is an opportunity worth considering. Unfortunately, we must part ways with this machinery due to the closu...Read More
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 34 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Table Size: 64" x 28"
Dimensions: 195" x 102" x 130"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 34 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec
Table Size: 64" x 28"
Dimensions: 195" x 102" x 130"
Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th Axis Drive & Wiring
5th Axis Driving & Wiring
Haas TR310 5th Axis Trunnion Table
High Speed Machining With Look Ahead
Through Spindle Coolant (300 PSI)
10,000 RPM Spindle
Dynamic Work Offsets & Tool Center Point Control
Chip Auger
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th Axis Drive & Wiring
5th Axis Driving & Wiring
Haas TR310 5th Axis Trunnion Table
High Speed Machining With Look Ahead
Through Spindle Coolant (300 PSI)
10,000 RPM Spindle
Dynamic Work Offsets & Tool Center Point Control
Chip Auger
