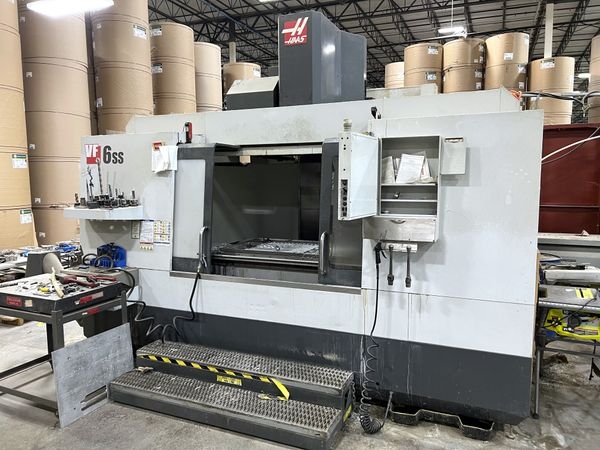

On offer is a pre-owned 2011 HAAS VF6SS Vertical Machining Center - a piece of machinery that has consistently produced high-quality work across a wide array powerful applications. Over the years, this industrial giant has pr...Read More
Notify Me:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 2,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table 34"
Spindle Nose to Table 4"
Tool-to-Tool 2.3 s
Chip-to-Chip 3.2 s
Max Cutting 833 ipm
Table Size: 64" x 28"
Weight: 22,300 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 2,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table 34"
Spindle Nose to Table 4"
Tool-to-Tool 2.3 s
Chip-to-Chip 3.2 s
Max Cutting 833 ipm
Table Size: 64" x 28"
Weight: 22,300 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Expanded Memory
Probe
Coolant Thru Spindle
Expanded Memory
