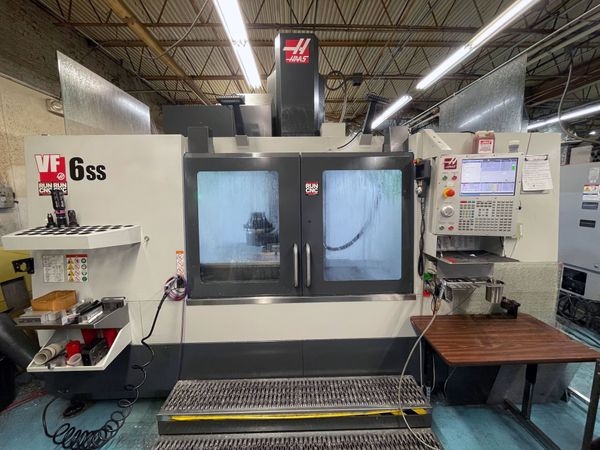

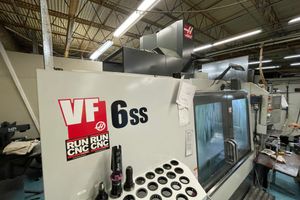

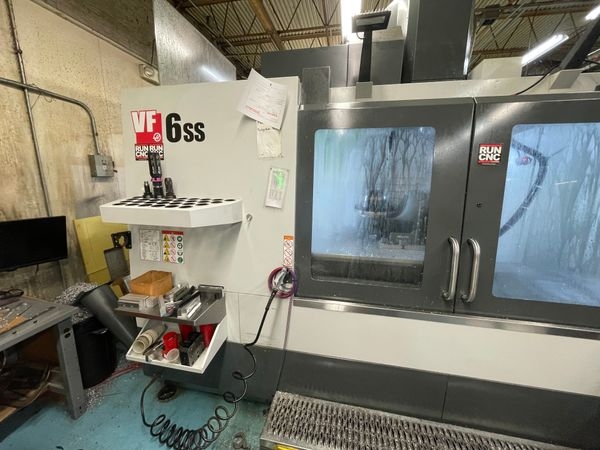

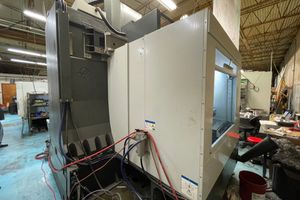

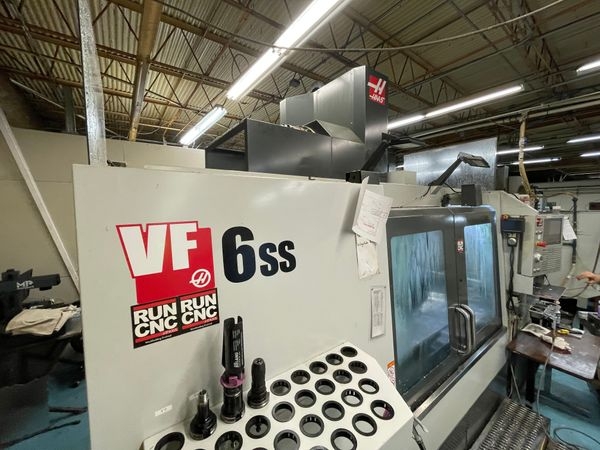

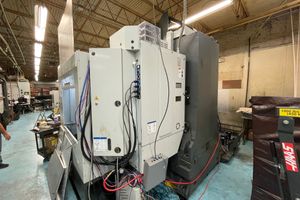

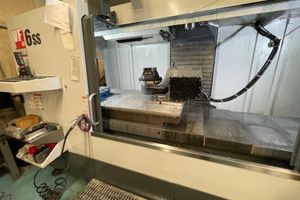

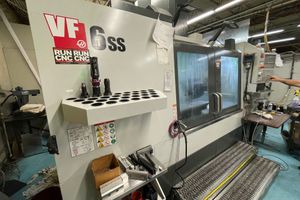

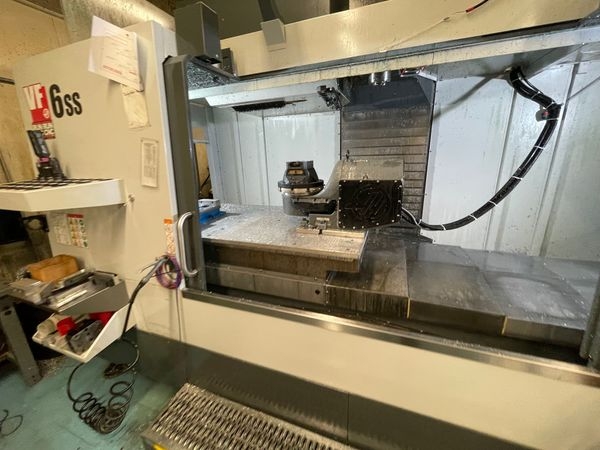

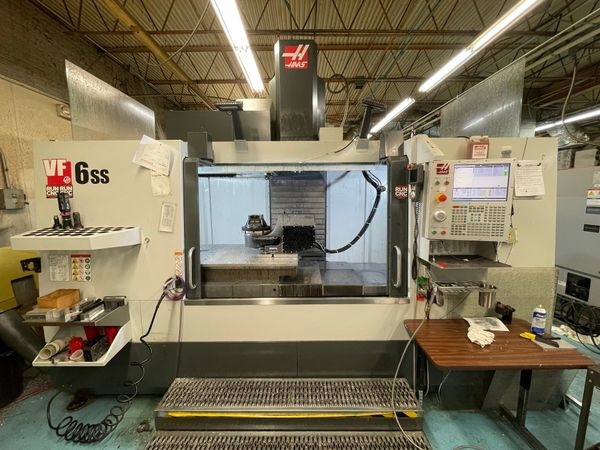

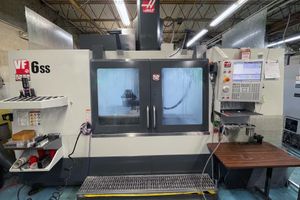

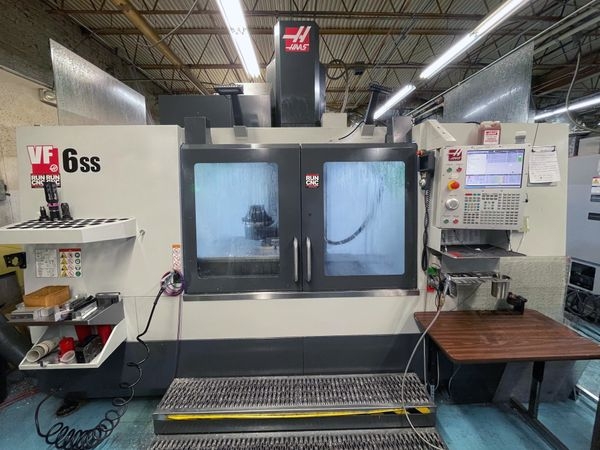

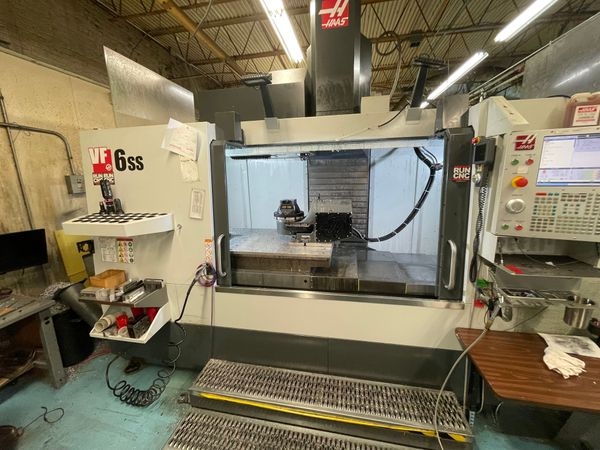

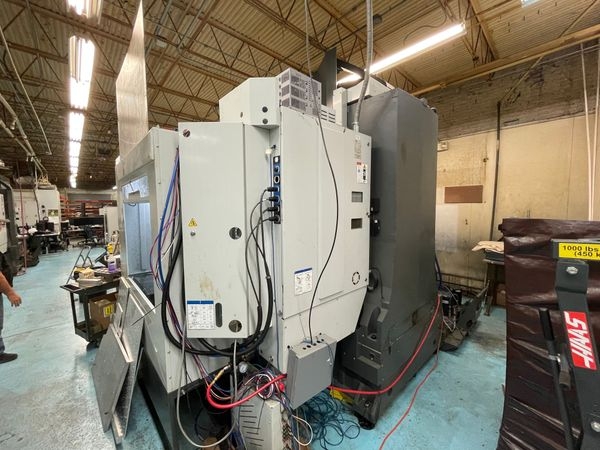

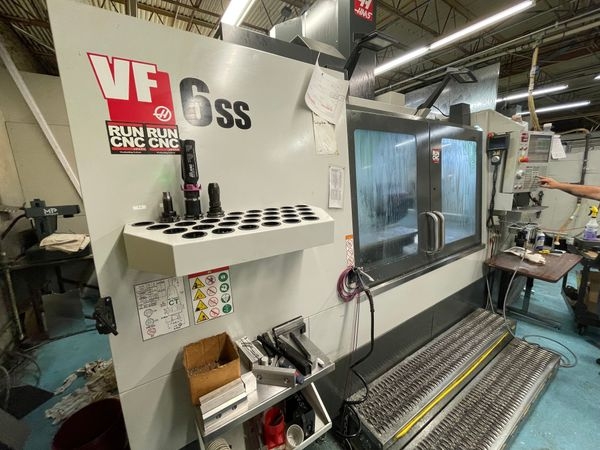

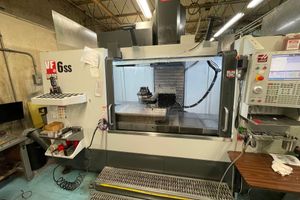

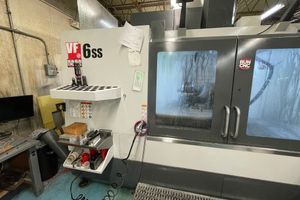

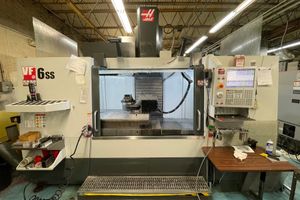

HAAS VF6SS CNC Mill

X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 2,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Spindle Nose to Table: 34"
Spindle Nose to Table: 4"
Tool-to-Tool: 2.3 s
Chip-to-Chip: 3.2 s
Max Cutting: 833 ipm
Table Size: 64" x 28"
Weight: 22,300 LBS

Built 12/2021

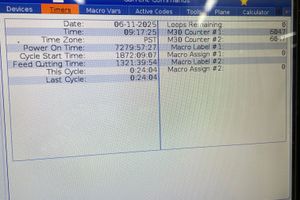

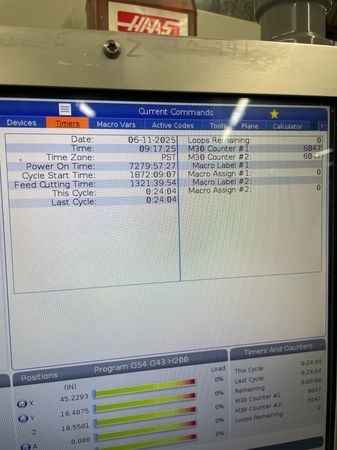

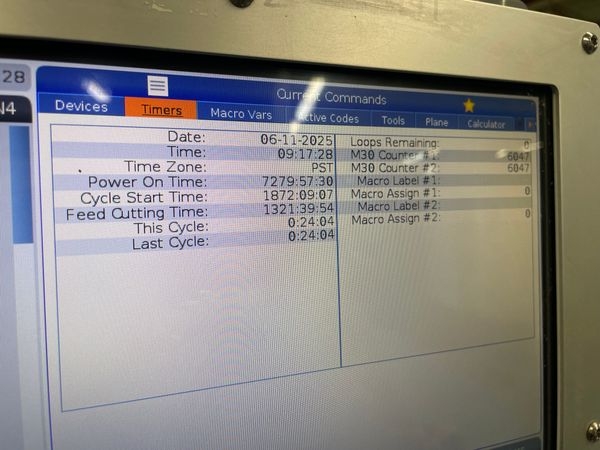

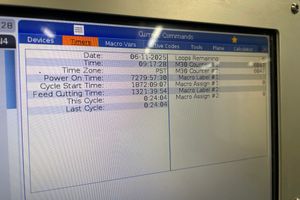

Power On: 7279
Cycle Start: 1872
Feed Cutting: 1321

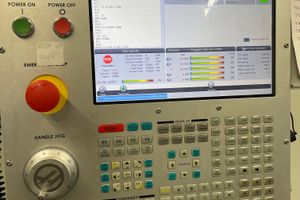

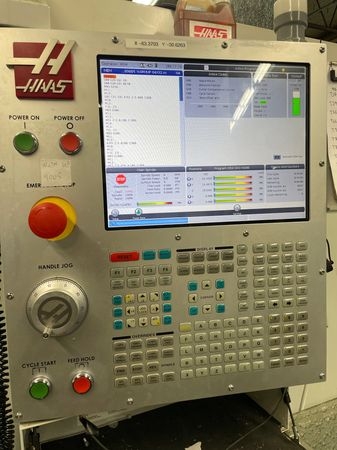

Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
Haas Next Gen CNC Control
15,000 RPM Spindle
1000 PSI Through Spindle Coolant

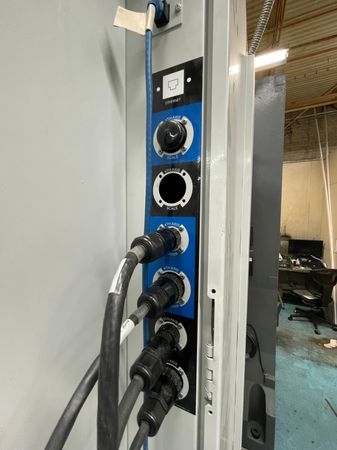

4th Axis Drive & Wiring
5th Axis Drive & Wiring

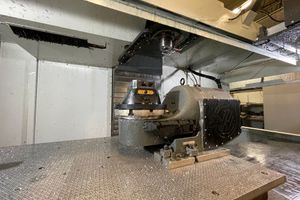

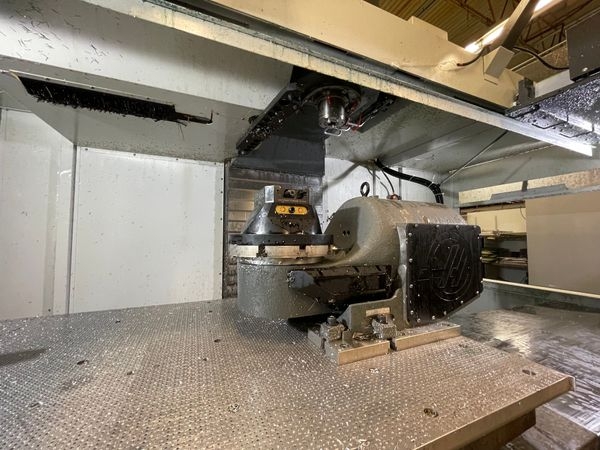

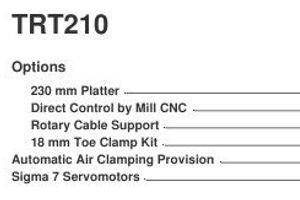

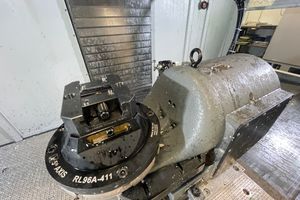

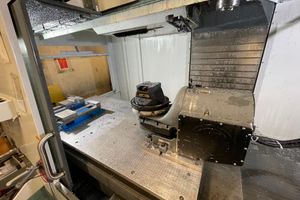

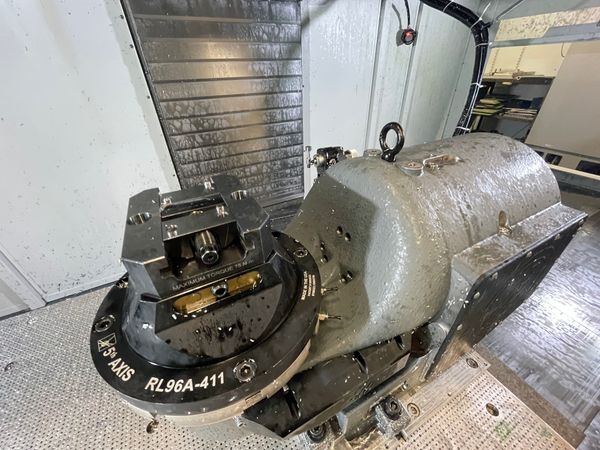

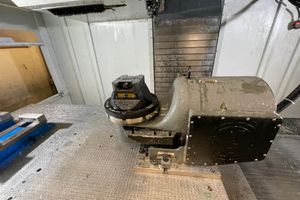

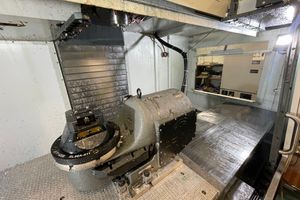

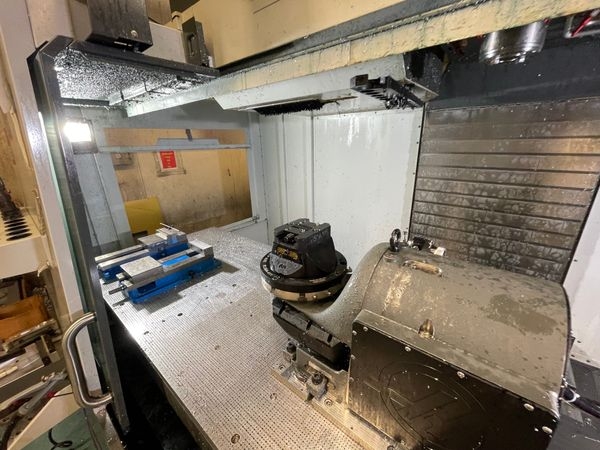

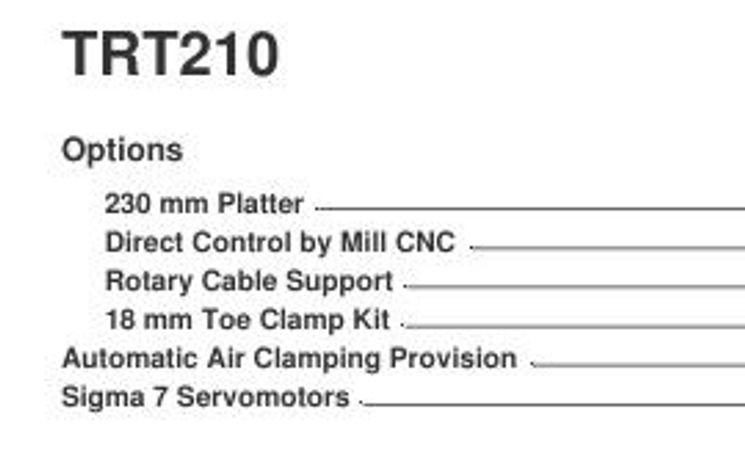

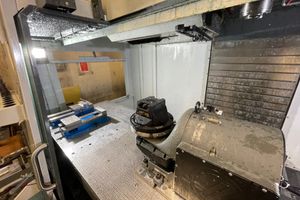

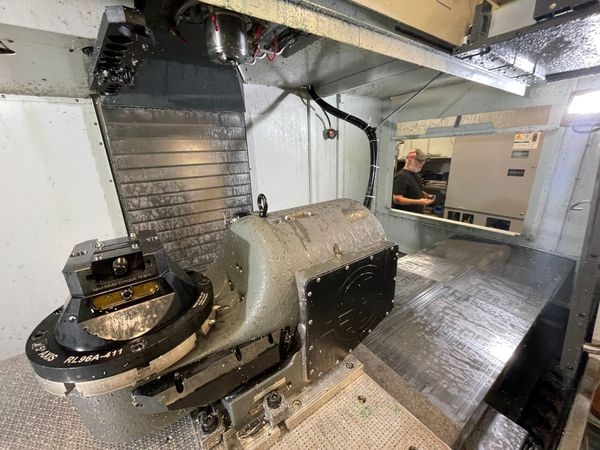

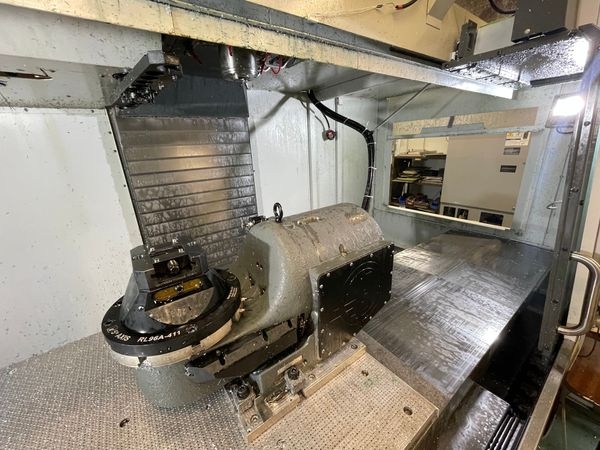

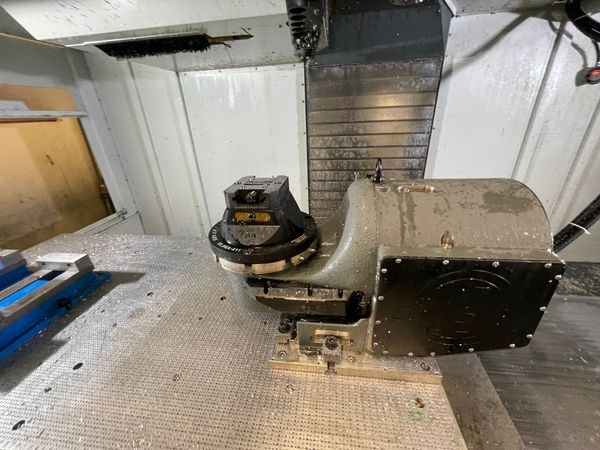

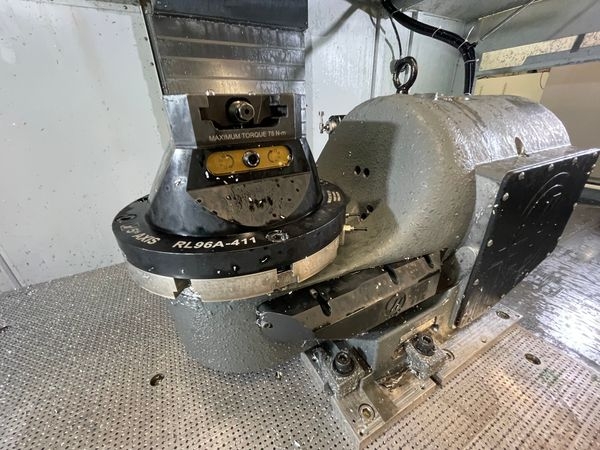

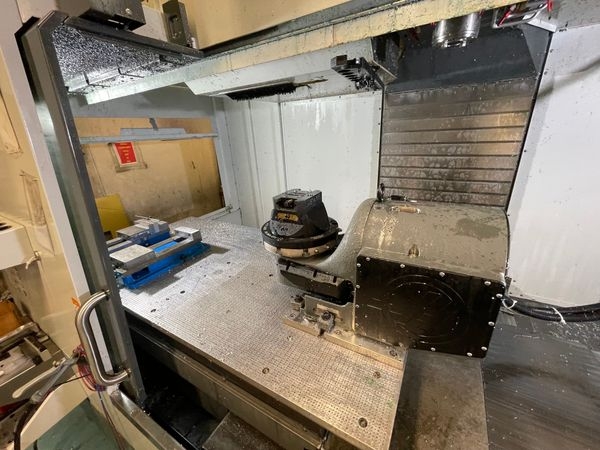

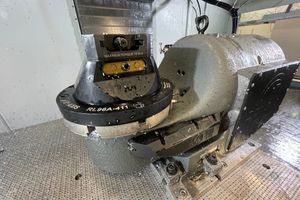

Haas TR210 5 Axis (Sigma 7) w/ 5th Axis Vice
Automatic Air Clamping Provision
Automatic Air Gun
Auto Door
High Intensity Lighting, 24V
Dynamic Work Offsets & Tool Center Point Control
Second Home Position
High Speed Machining
Low Voltage Transformer
Chip Tray Filter Kit
Coolant Tank Oil Skimmer

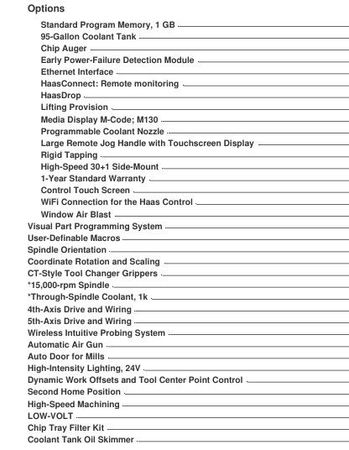

1 GB Memory
95 Gallon Coolant Tank
Chip Auger
Early Power Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop

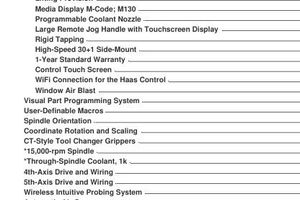

Media Display M-Code; M130

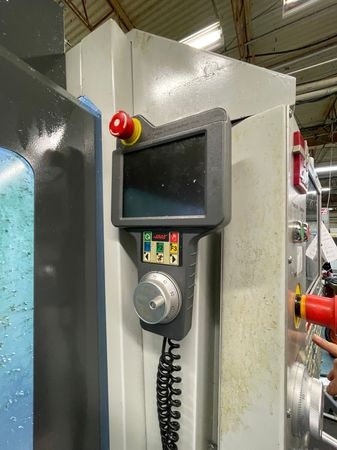

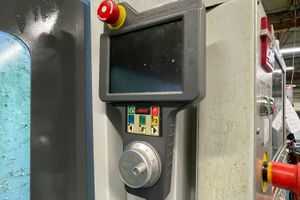

Remote Jog Handle with Touchscreen Display
Rigid Tapping
Visual Part Programming
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
