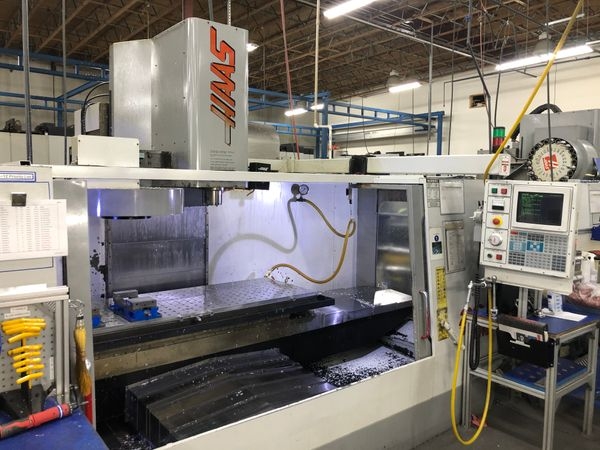

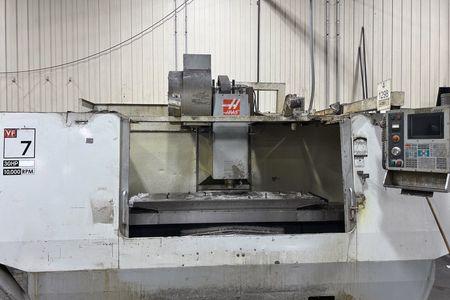

Used HAAS VF7 Vertical Machining Center
Pre-owned HAAS VF7 1998 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Washington. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF7 before it's gone.
Specs:
X Axis Travel: 84"
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 84" X 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 214" x 102" x 130"
Weight: 25,600 LBS
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 84" X 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 214" x 102" x 130"
Weight: 25,600 LBS
Options:
HAAS CNC Control
Programmable Coolant
Programmable Coolant
Owner:
Ron (Machine Shop in USA)
