Machine Overview

Specs:
X Axis Travel: 84"
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 84" x 28"
Weight: 25,600 LBS
Options:
Programmable Coolant
Upgraded 12,000 RPM Spindle
Pre-wired for 4th Axis
16MB Expanded Memory
Rigid Tapping
High Speed Machining
Early Power Failure Detection Module
RJH-C-Remote Jog Handle
VQC
Chip Auger
Description:

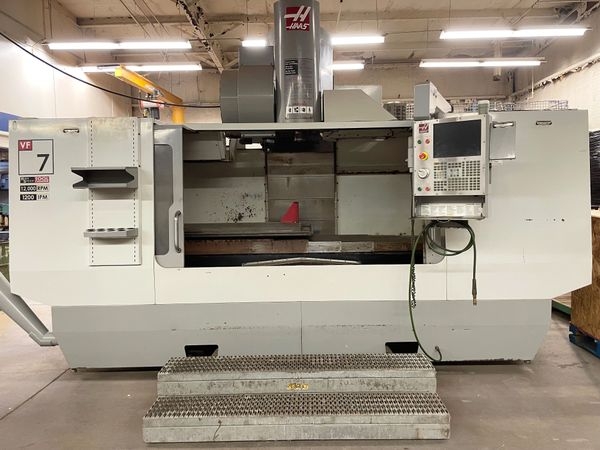

This 2008 HAAS VF7 Vertical Machining Center is a used product listed in good condition, with the seller indicating that it is currently under power and operational.

Despite being a 2008 model, this HAAS VF7 is packed with a range of options and upgrades. These include a Programmable Coolant for precision temperature control during operation. The spindle has been upgraded to a 12,000 RPM Side Mount for quicker and more precise machining. As a provision for future needs, it has been pre-wired for a 4th Axis addition, increasing its functionality.

The HAAS VF7 features a memory capacity of 16MB, which is expanded from the base model for faster processing and smooth operation. The included Rigid Tapping option allows for synchronized drilling and reaming, while the High-Speed Machining upgrade makes use of the expanded memory to deliver shorter cycle times.

A noteworthy safety feature is the Early Power Failure Detection Module. This prevents unforeseen power issues from causing harm or damage to the machine or the workpiece. Additionally, the machine includes an RJH-C-Remote Jog Handle for increased control during manual operation. The VQC, or Visual Quick Code, is a feature for easy control and programming.

To support cleanliness and maintenance, the HAAS VF7 comes with a Chip Auger. This feature minimizes cleanup time by automatically removing metal chips and particles that are generated during the machining process.

.
