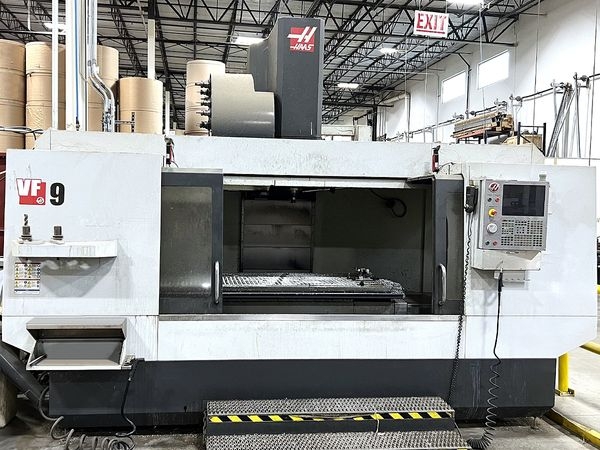

This listing presents a used 2012 HAAS VF9-50 Vertical Machining Center previously loved and appreciated by its owner and now ready for a new venture in a different workshop. Crafted with genuine precision by HAAS, a manufact...Read More
Notify Me:
Specs:
X Axis Travel: 84"
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3"
Table Size: 84" x 36"
Dimensions: 214" x 120" x 132"
Weight: 28,900 LBS
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3"
Table Size: 84" x 36"
Dimensions: 214" x 120" x 132"
Weight: 28,900 LBS
Options:
HAAS CNC Control
Probe
Programmable Coolant
Chip Auger
Remote Jog Handle
High Speed Machining
Spindle Orientation
Rigid Tapping
16MB Memory
Intuitive Programming
Rotation & Scaling
Probe
Programmable Coolant
Chip Auger
Remote Jog Handle
High Speed Machining
Spindle Orientation
Rigid Tapping
16MB Memory
Intuitive Programming
Rotation & Scaling
