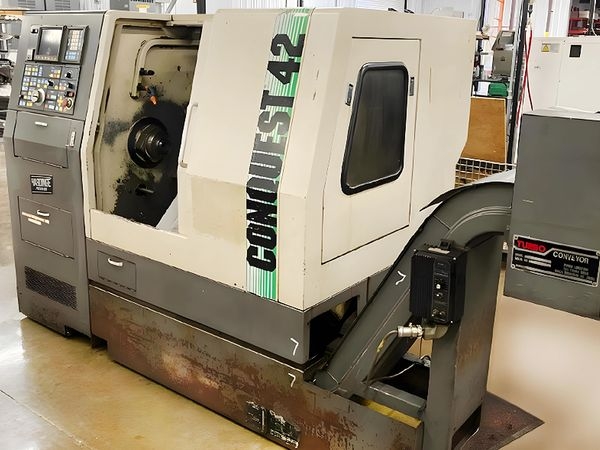

This 1990 HARDINGE CONQUEST42 CNC Lathe is a piece of heavy machinery that was once a center of our operations – powering countless projects. Yet, the time has come to simplify our setup, introducing the need to part wi...Read More
Notify Me:
Specs:
Max Turning Diameter: 9.1?
Distance Between Centers: 13.8?
Distance Spindle to Turret: 14?
X-Axis Travel: 5.45?
Z-Axis Travel: 13.65?
Bar Capacity: 1.625”
Swing Upper Way Covers: 19.5?
Swing Lower Way Covers: 14.5?
X-Axis Traverse: 472 ipm
Z-Axis Traverse: 630 ipm
Turret Capacity: 12 Stations
Main Spindle Speed: 5,000 RPM
Sub Spindle Speed: 3,000 RPM
Live Tool Speed: 4,000 RPM
Main Spindle Drive: 10 HP
Subspindle Drive: 1.65 HP
Live Tool Drive: 1.2 HP
Electrics: 208/230 V, 3 Ph, 50/60 Hz (Control: 115 V)
Approx. Dimensions (l x w x h): 8? x 5? x 6?
Approx. Weight: 10,000 LB
Options:
Fanuc O T Control
Chip Conveyor
Chip Conveyor
