Machine Overview
Sub Spindle Bore : 1.54"
Sub Bar Capacity : 1.18"
Sub Spindle Nose : A2-4
Sub Spindle Speed: 3,000RPM
Sub Spindle Motor: 4HP
Spindle Nose: A2-5
Main Turret Live Tools: 10
Live Tool Power: 1.5/2kW
X Axis Servo Motor: 0.5kW
Y Axis Servo Motor: 0.5kW
Z Axis Servo Motor: 0.5kW
Z1 Axis Servo Motor: 0.5kW
Coolant Tank Capacity: 39.63gal
Coolant Pump: 0.5HP
Hydraulic Pump: 2HP
Y Axis Travel: 15.16"
Fixed Tools: 8 Turning + 7 I.D.
Live Tool Speed: 3,000 RPM
Turning Tool Diameter: 0.79"
Boring Tool Diameter: 0.98"
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis

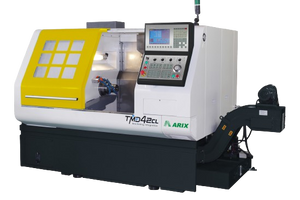

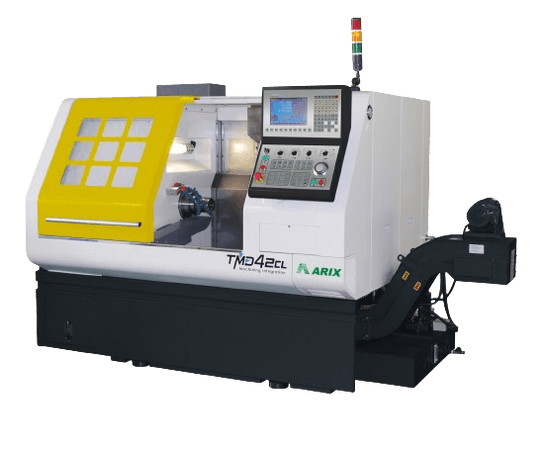

Pre-owned ARIX TMD42CL 2026 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mitsubishi control. This CNC Machine is currently located in USA. This ARIX CNC Lathe is available for a limited time. Get a quote today on this TMD42CL before it's gone.
