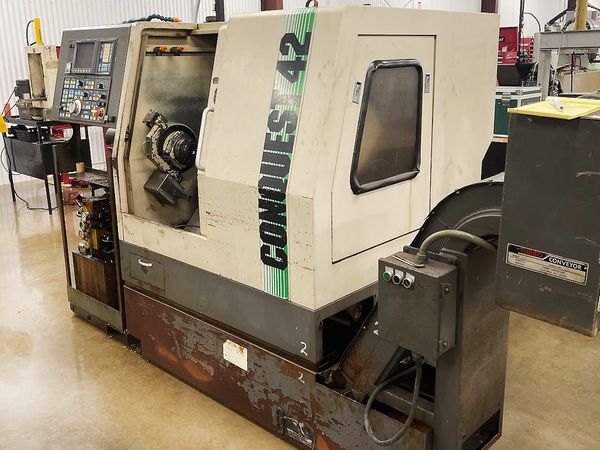

This 1990 HARDINGE CONQUEST42 CNC Lathe, is a robust and sturdy machine suitable for significant runs of parts. The machine is currently located in Texas and is available for purchase and pickup immediately.
The machine featu...Read More
Notify Me:
Specs:
Max Turning Diameter: 9.1?
Distance Between Centers: 13.8?
Distance Spindle to Turret: 14?
X-Axis Travel: 5.45?
Z-Axis Travel: 13.65?
Bar Capacity: 1.625”
Swing Upper Way Covers: 19.5?
Swing Lower Way Covers: 14.5?
X-Axis Traverse: 472 ipm
Z-Axis Traverse: 630 ipm
Turret Capacity: 12 Stations
Main Spindle Speed: 5,000 RPM
Sub Spindle Speed: 3,000 RPM
Live Tool Speed: 4,000 RPM
Main Spindle Drive: 10 HP
Subspindle Drive: 1.65 HP
Live Tool Drive: 1.2 HP
Electrics: 208/230 V, 3 Ph, 50/60 Hz (Control: 115 V)
Approx. Dimensions (l x w x h): 8? x 5? x 6?
Approx. Weight: 10,000 LB
Options:
Fanuc O T Control
Chip Conveyor
Chip Conveyor
