Machine Overview

Specs:
Bar capacity: 2" (51 mm)
Axes: X, Z, Y, C (4-axis)
Max spindle speed: 5,000 RPM
Main spindle power: 24.8 HP (18.5 kW)

Max turning diameter: 11.41"
Swing over bed: 21.65"
Max turning length: 23.4"

Axis travels:

X: 7.08"
Z: 25.67"
Y: 1.65"

Turret: BMT-45, ~16 stations, bi-directional, half-index
Live tooling: Yes (up to ~6,000 RPM)
Sub-spindle: Yes

Repeatability: ~0.0002"
Coolant: High-pressure (~280 PSI)

Control: Fanuc 0i-TF

Dimensions: ~115" x 72" x 76"
Weight: ~12,800 lbs
One Owner, Operated in a Fully Climate Controlled Shop
• Cutting Time: 3804 (equivalent to less
than 1 year of 2-shift operation)
• Light Turning Only, No Heavy or
Hard Turning Ever on this Lathe
• Only Materials Cut: 15/64” Diameter
Annealed Tool Steel, 1/2” Diameter
Stainless Steel, and 7/16” Stainless
Steel
• Live Tooling, Sub-Spindle. Y-Axis,
Glass Scales
• 2” Main Spindle Capacity
• 1.65” Sub-Spindle Capacity
• 16 Station Bi-Directional BMT 45
Turret with 1/2 Station Index
• Repeatability-X & Z: 0.000197”
• High Pressure Coolant: 280 PSI
• Capable of Hard Turning
• LNS Quick Load Servo 80 S2 Bar
Feeder with 8 Spindle liners
• Keyarrow Chip Conveyor
• Custom Continuous 25 micron
Coolant Filtration System 20 gpm (no
chips enter the coolant pumps)
• Ventilation System Sends Coolant
Mist Outside the Shop
• Approximately $5000 of Tooling Automatic Grease Lathe Lubrication
• Excellent Condition, Meticulously
Maintained
• Fanuc Series Oi-TF Controller
• Reliable Unattended “Lights Out”
Operation
Options:
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
Description:

```html

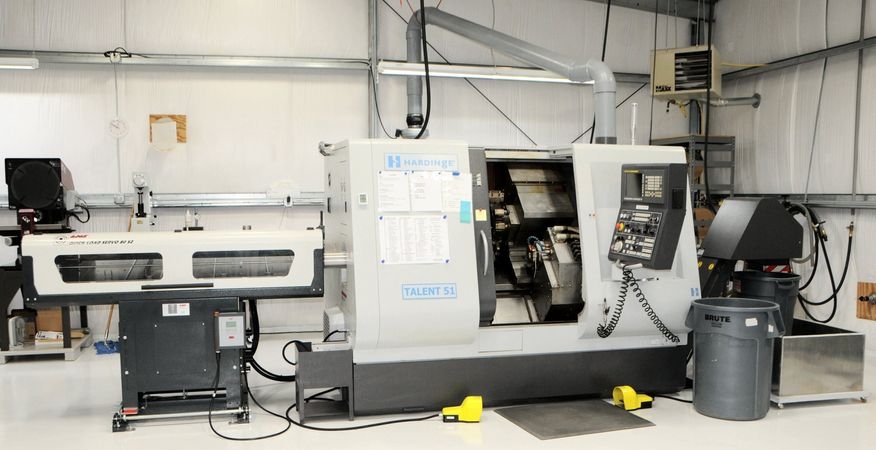

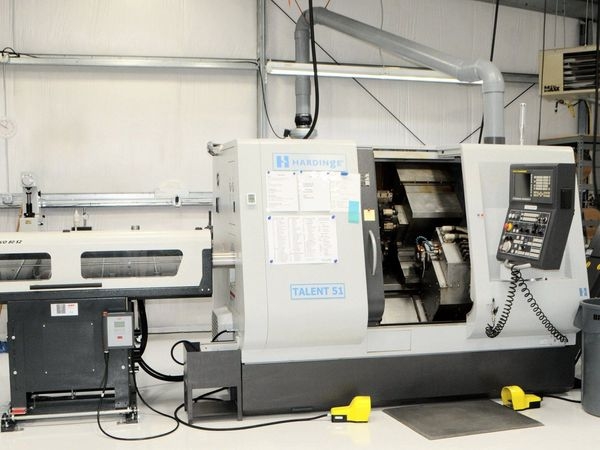

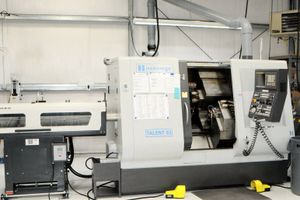

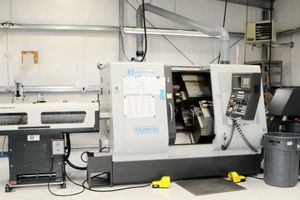

This 2017 HARDINGE T 51 MSY CNC Lathe stands out with its robust features and various upgrades that cater well to diverse machining needs.

Among the standout options, the chip conveyor efficiently handles waste material, making disposal straightforward and reducing the downtime associated with manual cleaning. For those aiming to enhance workflow, the inclusion of the bar feeder proves invaluable. This feature boosts productivity by allowing automated loading of material bars, seamlessly integrating with the machine's operation.

The live tooling option expands the machine's capability, enabling more complex cuts and operations without needing additional setups. This function is particularly beneficial in achieving detailed work with precision. Moreover, the sub spindle gives operators the advantage of working on both ends of a workpiece without manual intervention, streamlining multi-process tasks.

Another key feature is the Y axis, which offers increased versatility in cutting operations. This axis provides the ability to perform off-center operations and more complex geometries, adding significant value to the machine's capabilities.

Overall, this lathe, with its advanced features and thoughtful upgrades, aligns well with the needs of shops focusing on both flexible and straightforward operations. It presents a compelling option for businesses seeking to foster productivity while adapting to different machining requirements.

```
