Machine Overview

Specs:
Y Axis Travel: 19.7"
X Axis Travel: 13.8"
Z Axis Travel: 15.7"
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 32 ATC
X,Y,Z Rapid Federates: 118.1 ft/min
Table Size: 37.4" x 26"
Dimensions: 63" x 167.7" x 90"
Weight: 16,500 LBS
Max Table Load: 275 LBS
Options:
Fanuc 21-M Control
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Spindle Oil Chiller
Rigid Tapping
Coil Chip Conveyor & Chip Bucket
Full Guarding
BT-40 Tool Holders
2 Pallets
Description:

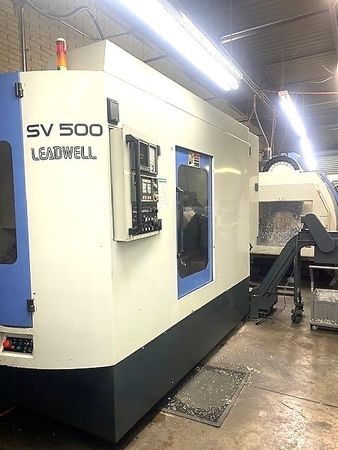

This 1999 LEADWELL SV500 Vertical Machining Center is a top-performing machine that has been expertly maintained to ensure that it operates at optimal capacity. It comes loaded with features that make it highly efficient and productive, and its many upgrades make it a versatile machine that can be customized to suit a wide range of machining needs. The machine is equipped with a Chip Conveyor, which ensures that chips are removed from the machining area and collected into a designated chip bucket. This feature helps to maintain a clean work environment and minimize downtime due to chip buildup. Additionally, the spindle oil chiller ensures that the spindle stays cool during operation, which extends the lifespan of the spindle and optimizes the accuracy and surface finish of machined parts. It also comes with Rigid Tapping, which enables accurate thread cutting without the need for a tapping head. This feature simplifies machining operations and allows for faster machining speeds. The Coil Chip Conveyor and Chip Bucket further adds to the efficiency of this machine as it provides maximum space savings and can handle heavy loads of chips. This used machining center is also fitted with full guarding for optimum safety while operating. It also employs BT-40 tool holders that enable the operator to easily swap out tools for maximum flexibility and productivity. With these features, the LEADWELL SV500 can handle virtually any machining operation quickly and accurately, making it an excellent choice for any shop. This high-performance machine that has been well-maintained and is in excellent condition. It is an outstanding investment for any shop that needs speed, precision, and versatility in their machining operations. With its many features and upgrades, this machine is tailor-made for volume production runs and can handle any job with ease, making it a smart investment for any business.
