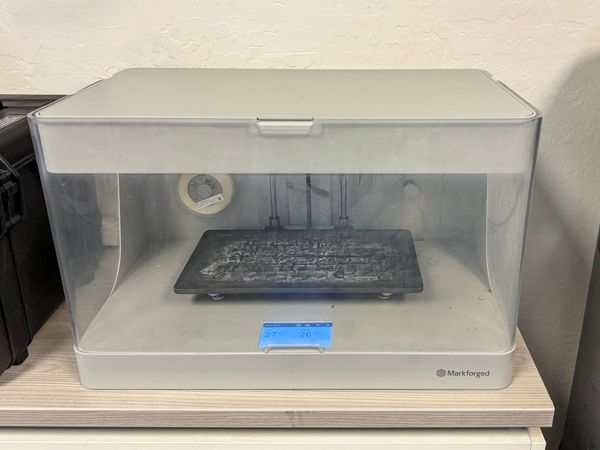

2022 MARKFORGED MARK TWO

X Axis Travel: 12.6"
Y Axis Travel: 5.2"
Z Axis Travel: 6"
Technical Specifications:
With Fiber Reinforcement: 9.8 in x 5.2 in x 6.0 in
(250 mm x 132 mm x 154 mm)
Printer Dimensions:
Width: 23.0 in (584 mm)
Depth: 13.0 in (330 mm)
Height: 14.0 in (355 mm)
Weight: Approximately 35 lbs (16 kg)
Printing Technology:
Base Material Extrusion: Fused Filament Fabrication (FFF)
Fiber Reinforcement: Continuous Fiber Fabrication (CFF)
Layer Height Resolution:
Options: 0.004 in, 0.005 in, 0.008 in
(100 ?m, 125 ?m, 200 ?m)
Supported Materials:
Thermoplastics:
Onyx: Micro carbon fiber-filled nylon
Nylon White: Unfilled nylon for flexible, non-marring parts
Continuous Fibers:
Carbon Fiber: Highest strength and stiffness
Fiberglass: Affordable strength enhancement
HSHT Fiberglass: High-strength, high-temperature applications
Kevlar®: Excellent toughness and impact resistance
Print Bed:
Type: Precision-ground composite print bed with kinematic coupling
Leveling: Assisted manual leveling procedure
Software:
Eiger Software: Compatible with Chrome, Safari, and other modern web browsers
File Types Supported: STL and OBJ
Connectivity: Wi-Fi, Ethernet, USB
Operating Environment:
Temperature Range: 59°F to 90°F (15°C to 32°C)
Relative Humidity: 10% to 90% (non-condensing)
Electrical Requirements:
Input Power: 100–240 VAC, 150 W (typical)
User Interface:
Display: 4-inch touchscreen for printer controls and real-time status
